Part Number |
55PC6003-20-2/6-9CS2502
|
---|---|
Manufacturer | TE Connectivity Raychem Cable Protection |
Other Part Numbers |
55PC6003-20-2/6-9CS2502-25-ND
55PC6003-20-2/6-9CS2502-25
|

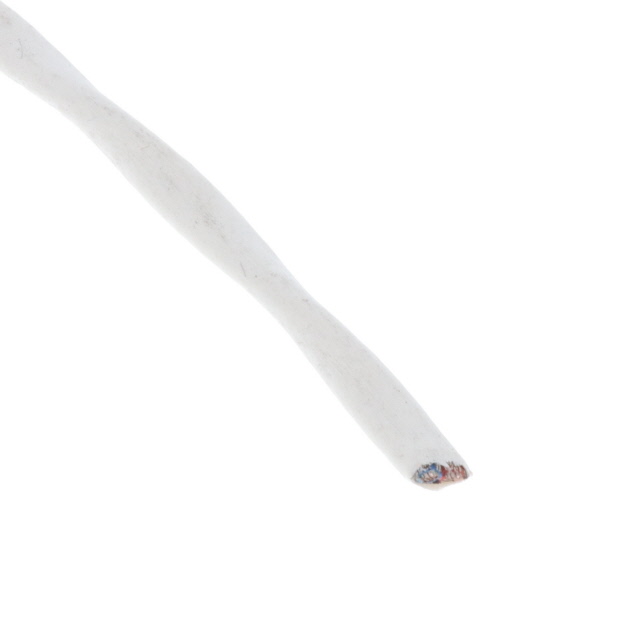

Description | CABLE 2COND 20AWG WHITE SHLD 25' |
Detailed Description | 2 Conductor Multi-Conductor Cable White 20 AWG Braid 25.00' (7.62m) |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | TE Connectivity Raychem Cable Protection | |
Series | ||
Packaging |
Bulk
|
|
Part Status | Discontinued | |
Length | 25.00' (7.62m) | |
Wire Gauge | 20 AWG | |
Jacket (Insulation) Material | Ethylene Tetrafluoroethylene (ETFE) | |
Conductor Strand | 19/32 | |
Operating Temperature | 150°C | |
Number of Conductors | 2 | |
Cable Type | Multi-Conductor | |
Jacket (Insulation) Diameter | 0.147" (3.73mm) | |
Jacket (Insulation) Thickness | 0.0070" (0.178mm) | |
Shield Type | Braid | |
Conductor Material | Copper Alloy, Nickel Coated | |
Jacket Color | White | |
Voltage | 600 V |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | 55PC6003-20-2/6-9CS2502 | |
Datasheets | 55PC6003 Drawing |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8544.49.3080 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
RoHS Status | RoHS non-compliant |
