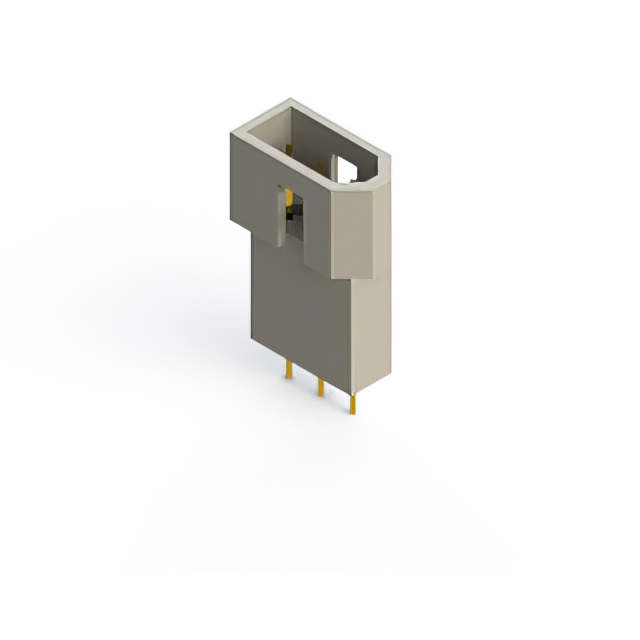

556-003-541-201 _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	556-003-541-201
Manufacturer	EDAC Inc.
Other Part Numbers	151-556-003-541-201-ND 151-556-003-541-201
Description	556 SERIES EDACON CONNECTOR WITH
Detailed Description	Connector Header Through Hole 3 position 0.156" (3.96mm)
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		EDAC Inc.
Series		556
Packaging		Bulk
Part Status		Active
Connector Type		Plug
Current Rating (Amps)		8.5A
Mounting Type		Through Hole
Number of Positions		3
Number of Rows		1
Style		Board to Cable/Wire
Operating Temperature		-40°C ~ 105°C
Applications		General Purpose
Contact Type		Non-Gendered
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Insulation Color		Black
Pitch - Mating		0.156" (3.96mm)
Contact Finish - Mating		Gold
Contact Finish - Post		Gold
Shrouding		Shrouded - 4 Wall
Insulation Material		Polyamide (PA), Nylon

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4030
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
