555

Part Number
555
Manufacturer MG Chemicals
Other Part Numbers
473-1007-ND
473-1007

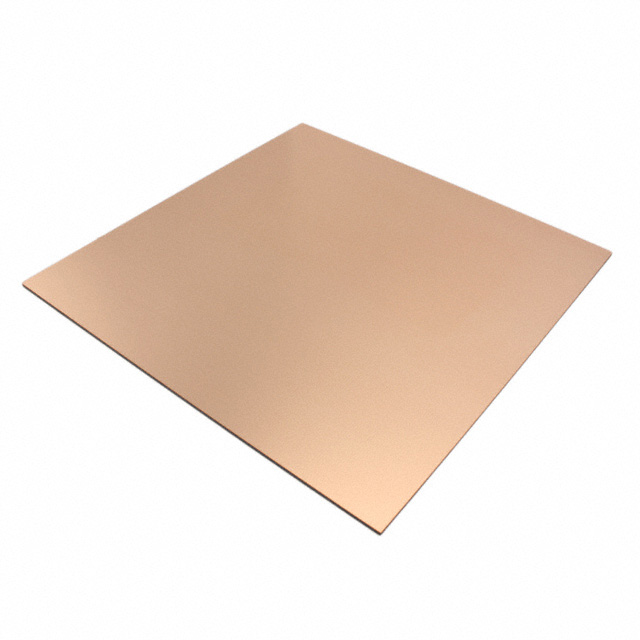

Description PROTO BOARD COPPER CLAD 12X12"
Detailed Description Proto Board Copper Clad FR4, Double Sided, 1 oz. 12.00" x 12.00" (304.8mm x 304.8mm)
Manufacturer Standard Lead Time 2 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer MG Chemicals
Series
500
Packaging
Bulk
Part Status Active
Size / Dimension 12.00" x 12.00" (304.8mm x 304.8mm)
Material Copper Clad FR4, Double Sided, 1 oz.
Board Thickness 0.062" (1.57mm) 1/16"
Proto Board Type Copper Clad, Uncoated

Documents & Media

RESOURCE TYPE LINK
Datasheets 555
Datasheets Prototyping Materials Appl Guide
Other Related Documents Product Catalog
Video File How to Route a Circuit Board using the Desktop PCB Milling Machine from Bantam Tools | DigiKey
MSDS Material Safety Datasheet 500 Series MSDS
Environmental Information MG Chemicals REACH
Environmental Information MG Chemicals RoHS

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.90.8585
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 96

Can ship immediately.
