5501MREDRED _ Pushbutton Switches_Switches_

+86-0755-8325-4547

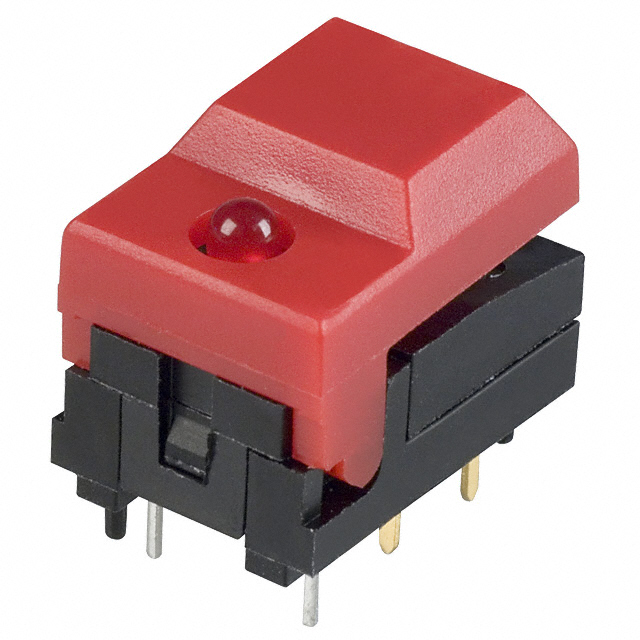

5501MREDRED

5501MREDRED

Part Number	5501MREDRED
Manufacturer	E-Switch
Other Part Numbers	EG17155-ND XR0101P EG17155 Q800412 5501M51
Description	SWITCH PB SPDT 0.3A 12V
Detailed Description	Pushbutton Switch SPDT Keyswitch, Illuminated Through Hole
Manufacturer Standard Lead Time	15 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches Pushbutton Switches
Manufacturer		E-Switch
Series		5500
Packaging		Bulk
Part Status		Active
Current Rating (Amps)		300mA (DC)
Mounting Type		Through Hole
Circuit		SPDT
Type		Keyswitch, Illuminated
Switch Function		On-Mom
Operating Temperature		-25°C ~ 65°C
Termination Style		PC Pin
Illumination Type, Color		LED, Red
Illumination Voltage (Nominal)		2.2 VDC
Actuator Type		Square, Button
Color - Actuator/Cap		Red
Actuator Marking		No Marking
Voltage Rating - DC		12 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		5501MREDRED
Datasheets		E-Switch RoHS 3 Cert
Datasheets		5500 Series One LED
Datasheets		5500, 5511 Series Side

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9031
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1363

Can ship immediately.
