5496FM

Part Number
5496FM
Manufacturer National Semiconductor
Other Part Numbers
2156-5496FM-ND
NATNSC5496FM
2156-5496FM
Description SHIFT REGISTER, 5-BIT, TTL
Detailed Description Shift Shift Register 1 Element 5 Bit 16-CFP

Product Attributes

Category
Manufacturer National Semiconductor
Series
Packaging
Bulk
Part Status Active

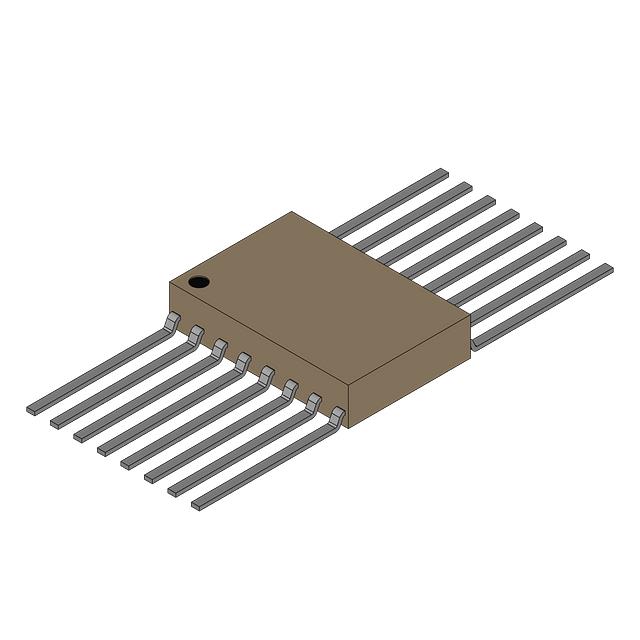

Package / Case 16-CFlatpack
Output Type Non-Inverted
Mounting Type Surface Mount
Number of Elements 1
Function Parallel to Serial, Serial to Parallel
Logic Type Shift Register
Operating Temperature -55°C ~ 125°C
Voltage - Supply 4.5V ~ 5.5V
Supplier Device Package 16-CFP
Number of Bits per Element 5

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
REACH Status REACH Unaffected
RoHS Status RoHS non-compliant
