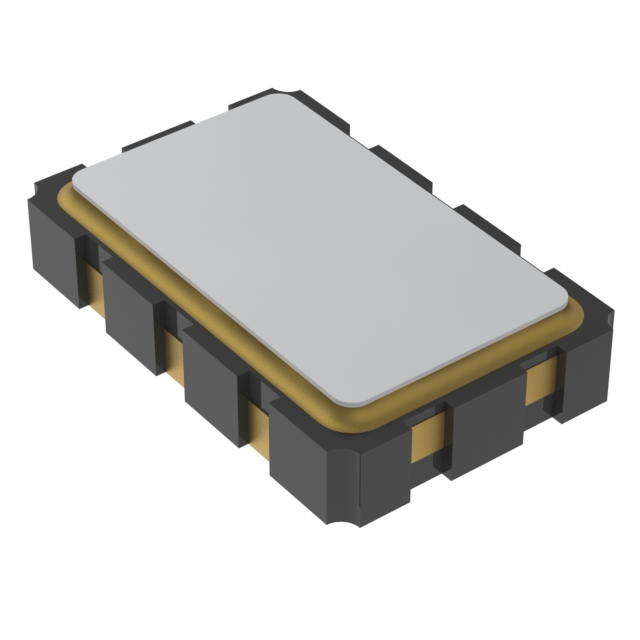

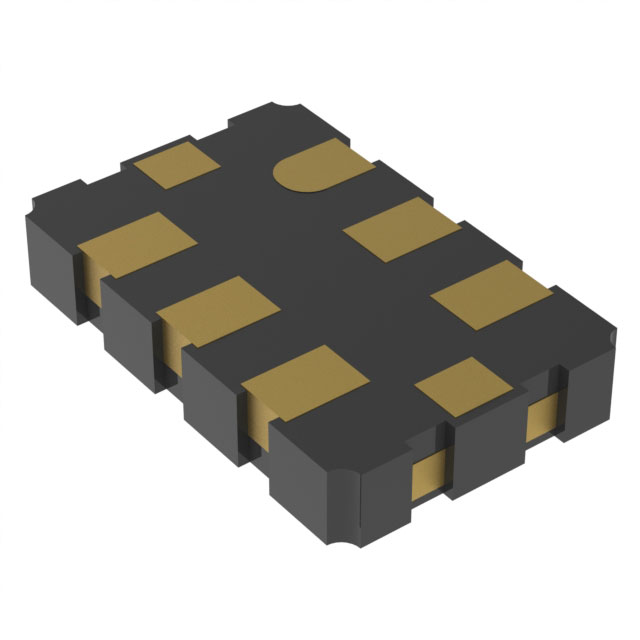

547BCA002503BCG

Part Number
547BCA002503BCG
Manufacturer Skyworks Solutions, Inc.
Other Part Numbers
863-547BCA002503BCG-ND
863-547BCA002503BCG
Description OSCILLATOR SMD
Detailed Description LVDS XO (Standard) Pin Configurable Oscillator 1.8V ~ 3.3V 8-SMD, No Lead
Datasheet Datasheet

Product Attributes

Category
Manufacturer Skyworks Solutions, Inc.
Series
Ultra™ Si547
Packaging
Strip
Part Status Active
Package / Case 8-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Output LVDS
Function Enable/Disable
Type XO (Standard)
Operating Temperature -40°C ~ 85°C
Frequency Stability ±7ppm
Voltage - Supply 1.8V ~ 3.3V
Height 0.052" (1.33mm)
Current - Supply (Max) 121mA
Frequency - Output 1 100MHz, 122.88MHz,156.25MHz, 1.5GHz
Current - Supply (Disable) (Max) 112 mA
Base Resonator Crystal

Documents & Media

RESOURCE TYPE LINK
Datasheets 547BCA002503BCG

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
