54063913400 _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	54063913400
Manufacturer	Sumida Corporation
Other Part Numbers	308-1716-2-ND 308-1716-1-ND 308-1716-6-ND 54063913400INACTIVE 5406 391 34 00 308-1716-6 54063913400-ND 308-1716-1 308-1716-2
Description	FIXED IND 390NH 80MA 4 OHM SMD

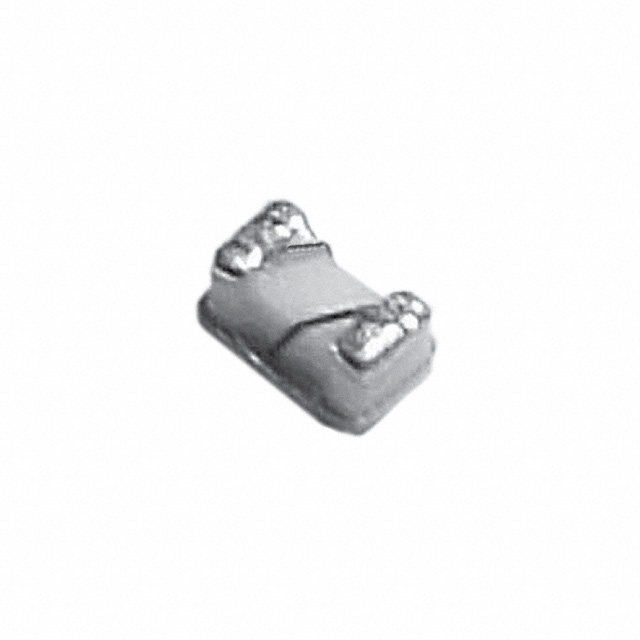

Detailed Description	390 nH Unshielded Drum Core, Wirewound Inductor 80 mA 4Ohm Max 0603 (1608 Metric)

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Sumida Corporation
Series		5406
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±5%
Package / Case		0603 (1608 Metric)
Size / Dimension		0.063" L x 0.031" W (1.60mm x 0.80mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Drum Core, Wirewound
Operating Temperature		-55°C ~ 125°C
DC Resistance (DCR)		4Ohm Max
Q @ Freq		30 @ 100MHz
Frequency - Self Resonant		810MHz
Material - Core		Ceramic
Inductance Frequency - Test		100 MHz
Supplier Device Package		0605 (1712 Metric)
Height - Seated (Max)		0.039" (1.00mm)
Inductance		390 nH
Current Rating (Amps)		80 mA

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
