54061003400 _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	54061003400
Manufacturer	Sumida Corporation
Other Part Numbers	308-1701-2-ND 308-1701-1-ND 308-1701-6-ND 54061003400-ND 5406 100 34 00 308-1701-2 54061003400INACTIVE 308-1701-1 308-1701-6
Description	FIXED IND 10NH 780MA 45 MOHM SMD

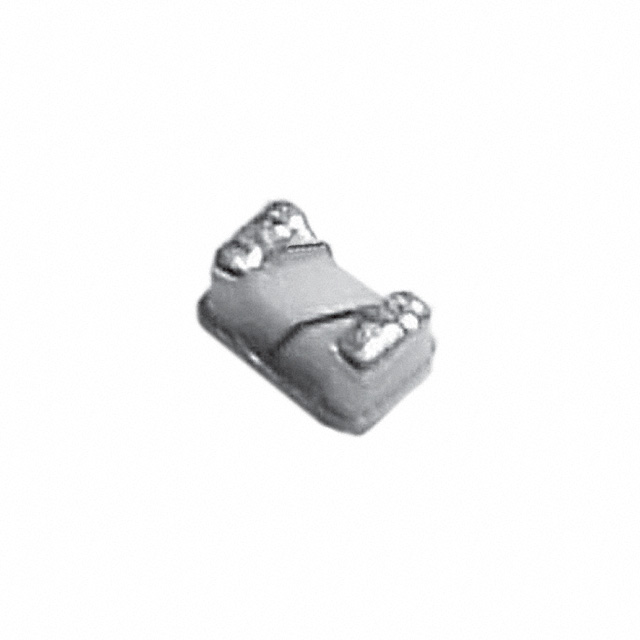

Detailed Description	10 nH Unshielded Drum Core, Wirewound Inductor 780 mA 45mOhm Max 0603 (1608 Metric)

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Sumida Corporation
Series		5406
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±5%
Package / Case		0603 (1608 Metric)
Size / Dimension		0.063" L x 0.031" W (1.60mm x 0.80mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Drum Core, Wirewound
Operating Temperature		-55°C ~ 125°C
DC Resistance (DCR)		45mOhm Max
Q @ Freq		45 @ 250MHz
Frequency - Self Resonant		5GHz
Material - Core		Ceramic
Inductance Frequency - Test		250 MHz
Supplier Device Package		0605 (1712 Metric)
Height - Seated (Max)		0.039" (1.00mm)
Inductance		10 nH
Current Rating (Amps)		780 mA

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
