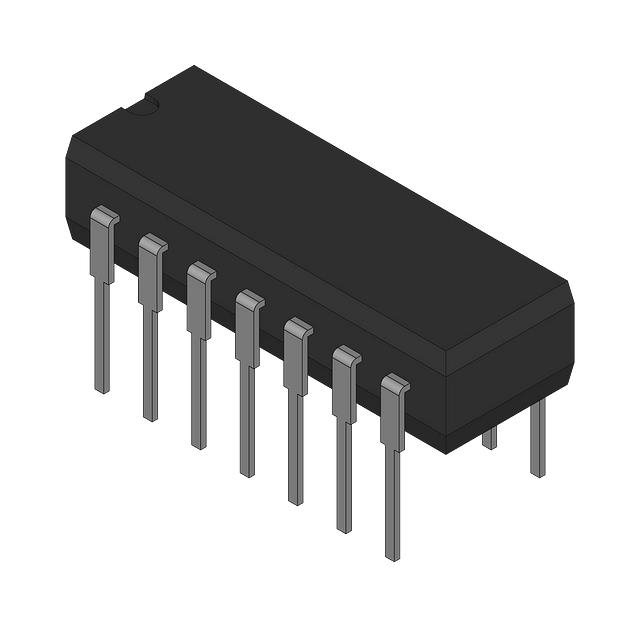

5404DM

5404DM

Part Number	5404DM
Manufacturer	National Semiconductor
Other Part Numbers	2156-5404DM-ND NATNSC5404DM 2156-5404DM
Description	IC INVERTER 6CH 1-INP 14CERDIP
Detailed Description	Inverter IC 6 Channel 14-CERDIP

Product Attributes

Category		Integrated Circuits (ICs) Logic Gates and Inverters
Manufacturer		National Semiconductor
Series
Packaging		Bulk
Part Status		Active
Package / Case		14-CDIP (0.300", 7.62mm)
Mounting Type		Through Hole
Logic Type		Inverter
Operating Temperature		-55°C ~ 125°C
Voltage - Supply		4.5V ~ 5.5V
Current - Output High, Low		400µA, 16mA
Number of Inputs		1
Supplier Device Package		14-CERDIP
Input Logic Level - High		2V
Input Logic Level - Low		0.8V
Max Propagation Delay @ V, Max CL		22ns @ 5V, 15pF
Number of Circuits		6
Current - Quiescent (Max)		33 mA

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		Vendor Undefined
RoHS Status		RoHS non-compliant
