54-00305

54-00305

Part Number	54-00305
Manufacturer	Tensility International Corporation
Other Part Numbers	839-54-00305TR-ND 839-54-00305CT-ND 839-54-00305DKR-ND 839-54-00305CT 839-54-00305DKR 839-54-00305TR

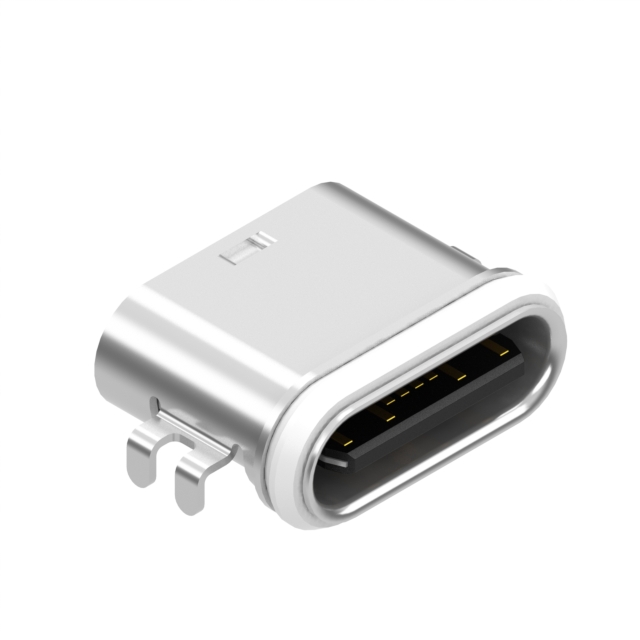

Description	CONN RCPT USB2.0 TYPEC SMD RA
Detailed Description	USB-C (USB TYPE-C) USB 2.0 Receptacle Connector 24 (16+8 Dummy) Position Surface Mount, Right Angle; Through Hole
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects USB, DVI, HDMI Connectors USB, DVI, HDMI Connector Assemblies
Manufacturer		Tensility International Corporation
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Voltage - Rated		30VDC
Number of Contacts		24 (16+8 Dummy)
Connector Type		USB-C (USB TYPE-C)
Gender		Receptacle
Current Rating (Amps)		3A
Mounting Type		Surface Mount, Right Angle; Through Hole
Shielding		Shielded
Operating Temperature		-40°C ~ 85°C
Specifications		USB 2.0
Termination		Solder
Ingress Protection		IPX7 - Waterproof
Mounting Feature		Horizontal
Mating Cycles		10000
Number of Ports		1

Documents & Media

RESOURCE TYPE		LINK
Datasheets		54-00305

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 808

Can ship immediately.
