Part Number	54-00178
Manufacturer	Tensility International Corporation
Other Part Numbers	839-54-00178TR-ND 839-54-00178CT-ND 839-54-00178DKR-ND 839-54-00178DKR 839-54-00178CT 839-54-00178TR

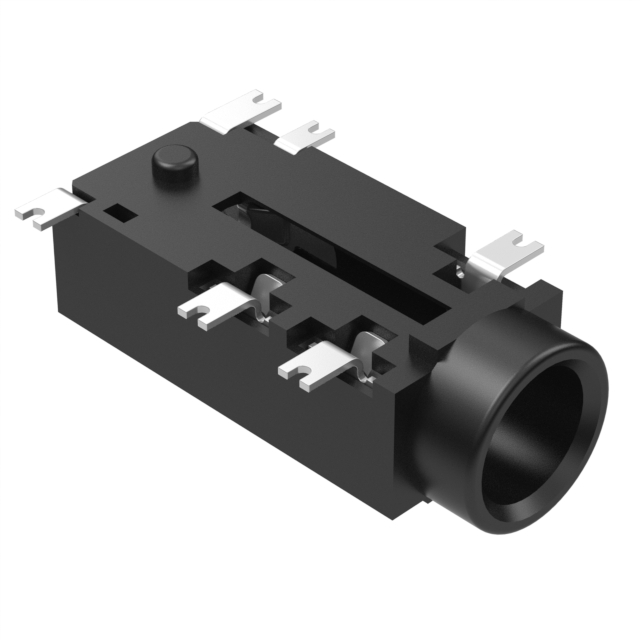

Description	CONN JACK STEREO 3.5MM SMD R/A
Detailed Description	3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Barrel Connectors Audio Connectors
Manufacturer		Tensility International Corporation
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Board Guide
Voltage - Rated		48VDC
Connector Type		Phone Jack
Gender		Female
Mounting Type		Surface Mount, Right Angle
Shielding		Unshielded
Operating Temperature		-40°C ~ 105°C
Number of Positions/Contacts		3 Conductors, 6 Contacts
Signal Lines		Stereo (3 Conductor, TRS)
Termination		Solder
Contact Material		Phosphor Bronze
Body Color		Black
Contact Material - Plating		Gold
Actual Diameter		0.142" (3.60mm)
Industry Recognized Mating Diameter		3.50mm (0.141", 1/8", Mini Plug) - Headphone
Current Rating (Amps)		0.5 A

RESOURCE TYPE		LINK
Datasheets		54-00178

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
