54-00023 _ USB, DVI, HDMI Connector Assemblies_USB, DVI, HDMI Connectors_Connectors, Interconnects

Part Number	54-00023
Manufacturer	Tensility International Corporation
Other Part Numbers	54-00023-ND

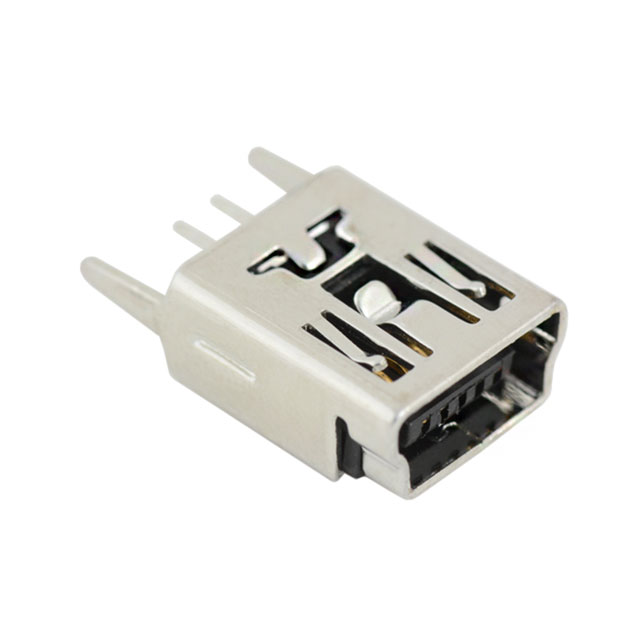

Description	CONN RCPT MINI USB B 5POS VERT
Detailed Description	USB - mini B Receptacle Connector 5 Position Through Hole
Manufacturer Standard Lead Time	16 weeks

Category		Connectors, Interconnects USB, DVI, HDMI Connectors USB, DVI, HDMI Connector Assemblies
Manufacturer		Tensility International Corporation
Series
Packaging		Tray
Part Status		Active
Features		Board Guide
Voltage - Rated		30VDC
Number of Contacts		5
Connector Type		USB - mini B
Gender		Receptacle
Contact Finish		Gold
Current Rating (Amps)		2A
Mounting Type		Through Hole
Shielding		Unshielded
Operating Temperature		-40°C ~ 85°C
Termination		Solder
Mounting Feature		Vertical
Mating Cycles		5000
Insulation Color		Black
Shell/Shielding Material		Phosphor Bronze
Number of Ports		1

RESOURCE TYPE		LINK
Datasheets		54-00023

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
