54-00003 _ USB, DVI, HDMI Connector Assemblies_USB, DVI, HDMI Connectors_Connectors, Interconnects

Part Number	54-00003
Manufacturer	Tensility International Corporation
Other Part Numbers	54-00003-ND
Description	CONN RCPT TYPEA 4POS SMD R/A

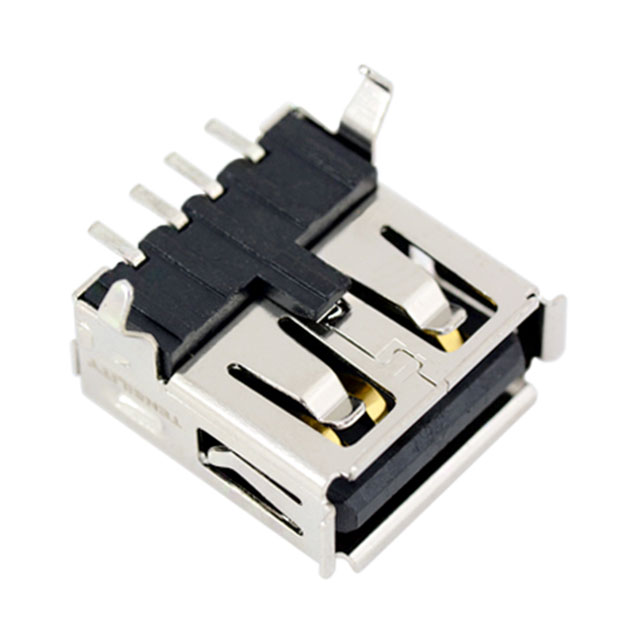

Detailed Description	USB-A (USB TYPE-A) Receptacle Connector 4 Position Surface Mount, Right Angle
Manufacturer Standard Lead Time	16 weeks

Category		Connectors, Interconnects USB, DVI, HDMI Connectors USB, DVI, HDMI Connector Assemblies
Manufacturer		Tensility International Corporation
Series
Packaging		Tray
Part Status		Active
Features		Board Lock
Voltage - Rated		30VDC
Number of Contacts		4
Connector Type		USB-A (USB TYPE-A)
Gender		Receptacle
Contact Finish		Gold
Current Rating (Amps)		3A
Mounting Type		Surface Mount, Right Angle
Shielding		Unshielded
Operating Temperature		-40°C ~ 85°C
Termination		Solder
Mounting Feature		Horizontal
Mating Cycles		1500
Insulation Color		Black
Shell/Shielding Material		Steel
Number of Ports		1

RESOURCE TYPE		LINK
Datasheets		54-00003

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
