52601-S10-8LF _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	52601-S10-8LF
Manufacturer	Storage & Server IO (Amphenol Communications Solutions)
Other Part Numbers	609-3593-ND Q9765409 2266-52601-S10-8LF 609-3593 52601-S10-8LF-ND 52601S108LF

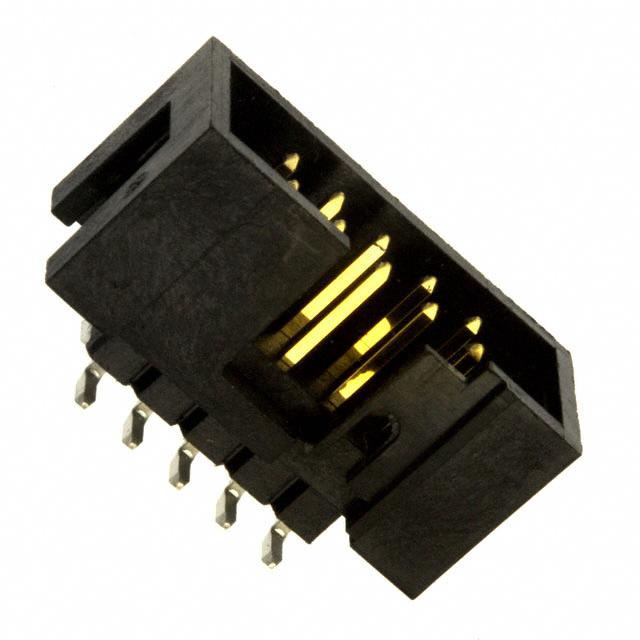

Description	CONN HEADER SMD 10POS 2.54MM
Detailed Description	Connector Header Surface Mount 10 position 0.100" (2.54mm)
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Storage & Server IO (Amphenol Communications Solutions)
Series		Quickie™
Packaging		Tray
Part Status		Active
Connector Type		Header
Mounting Type		Surface Mount
Number of Positions		10
Number of Rows		2
Style		Board to Board or Cable
Operating Temperature		-65°C ~ 105°C
Contact Type		Male Pin
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Phosphor Bronze
Insulation Color		Black
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Gold or Gold, GXT™
Contact Finish Thickness - Mating		15.0µin (0.38µm)
Contact Finish - Post		Tin
Contact Finish Thickness - Post		100.0µin (2.54µm)
Contact Shape		Square
Insulation Height		0.365" (9.27mm)
Shrouding		Shrouded - 4 Wall
Row Spacing - Mating		0.100" (2.54mm)
Contact Length - Mating		0.230" (5.84mm)

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		RoHS Compliant

Can ship immediately.
