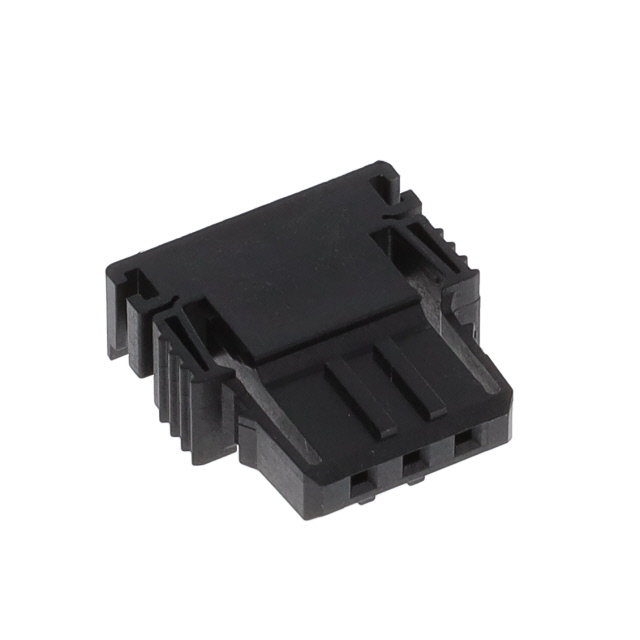

524674-E

524674-E

Part Number	524674-E
Manufacturer	TE Connectivity ERNI
Other Part Numbers	2684-524674-E-ND 524674 2684-524674-ND 2684-524674 2684-524674-E
Description	CONN RCPT HSG 3POS 2.54MM
Detailed Description	3 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Rectangular Connectors Rectangular Connector Housings
Manufacturer		TE Connectivity ERNI
Series		MAXIBRIDGE
Packaging		Bulk
Part Status		Active
Connector Type		Receptacle
Contact Termination		Crimp
Color		Black
Mounting Type		Free Hanging (In-Line)
Number of Positions		3
Pitch		0.100" (2.54mm)
Operating Temperature		-55°C ~ 150°C
Contact Type		Female Socket
Fastening Type		Latch Lock
Note		Contacts Not Included
Insulation Material		Polyamide (PA46), Nylon 4/6
Number of Rows		1

Documents & Media

RESOURCE TYPE		LINK
Datasheets		524674-E

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8538.90.8180
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 444

Can ship immediately.
