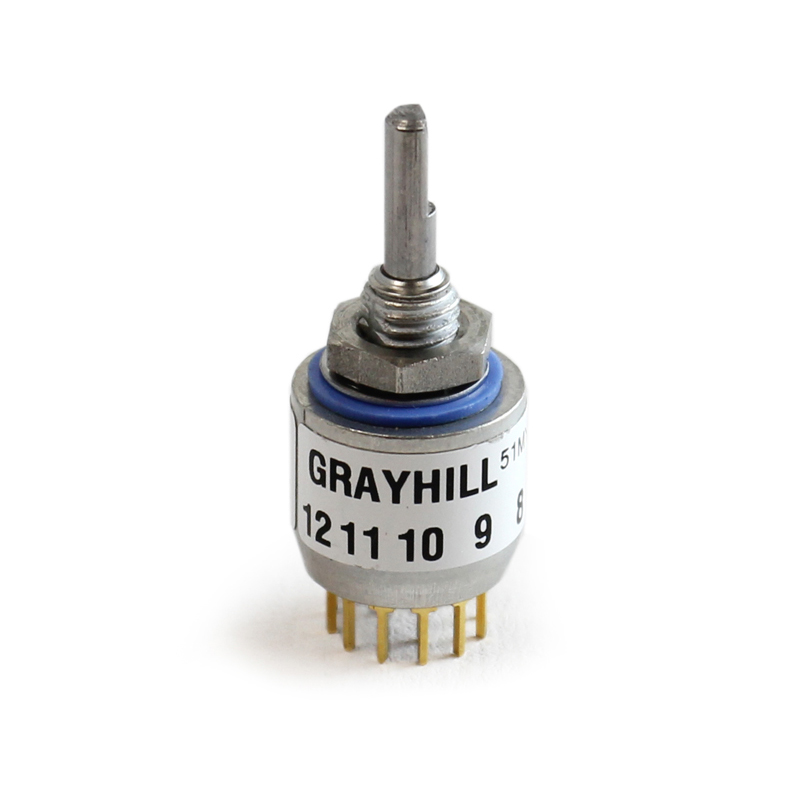

51P22-01-1-03N

51P22-01-1-03N

Part Number	51P22-01-1-03N
Manufacturer	Grayhill, Inc.
Other Part Numbers	136-51P22-01-1-03N-ND 136-51P22-01-1-03N
Description	SWITCH ROTARY 3POS 150MA 115V
Detailed Description	Rotary Switch 3 Position SP3T 150mA (AC), 200mA (DC) 115 VAC Panel Mount, Through Hole
Manufacturer Standard Lead Time	12 weeks

Product Attributes

Category		Switches Rotary Switches
Manufacturer		Grayhill, Inc.
Series		51
Packaging		Bulk
Part Status		Active
Contact Finish		Gold
Current Rating (Amps)		150mA (AC), 200mA (DC)
Mounting Type		Panel Mount, Through Hole
Number of Positions		3
Termination Style		PC Pin
Actuator Length		9.53mm
Actuator Type		Flatted (3.17mm Dia)
Angle of Throw		22.5°
Number of Decks		1
Number of Poles per Deck		1
Circuit per Deck		SP3T
Contact Timing		Non-Shorting (BBM)
Index Stops		Fixed
Depth Behind Panel		13.64mm
Voltage Rating - AC		115 V
Voltage Rating - DC		28 V

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
RoHS Status		ROHS3 Compliant
