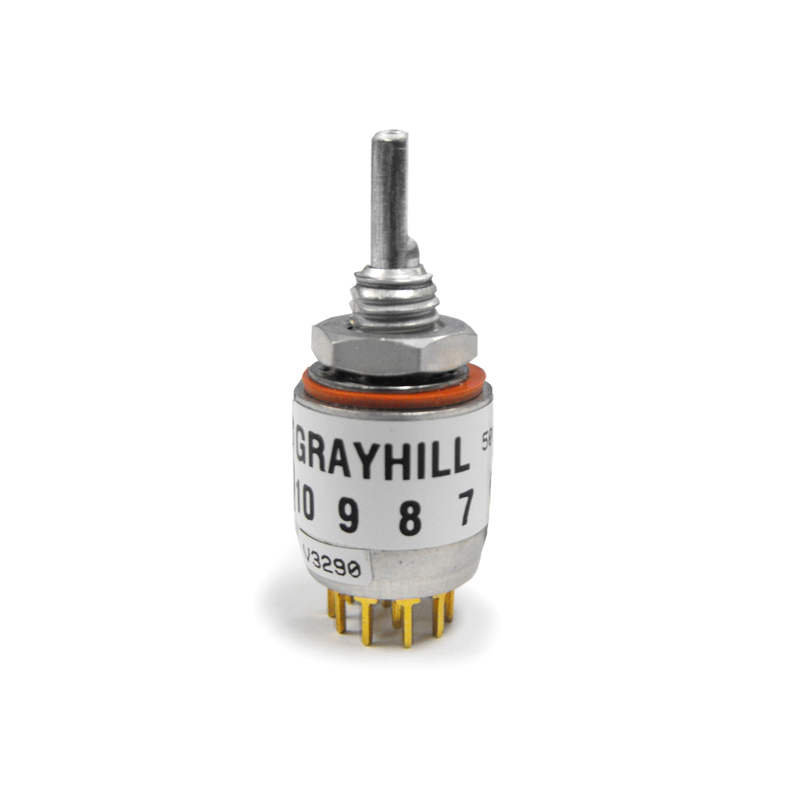

50EMP36-01B04S

50EMP36-01B04S

Part Number	50EMP36-01B04S
Manufacturer	Grayhill, Inc.
Other Part Numbers	50EMP36-01B04S-ND
Description	SWITCH ROTARY 4POS 150MA 115V
Detailed Description	Rotary Switch 4 Position SP4T 150mA (AC), 200mA (DC) 115 VAC Panel Mount, Through Hole
Datasheet	Datasheet

Product Attributes

Category		Switches Rotary Switches
Manufacturer		Grayhill, Inc.
Series		50
Packaging		Bulk
Part Status		Active
Features		Process Sealed
Contact Finish		Gold
Current Rating (Amps)		150mA (AC), 200mA (DC)
Mounting Type		Panel Mount, Through Hole
Number of Positions		4
Termination Style		PC Pin
Actuator Length		9.53mm
Actuator Type		Flatted (3.17mm Dia)
Angle of Throw		36°
Number of Decks		1
Number of Poles per Deck		1
Circuit per Deck		SP4T
Contact Timing		Shorting (MBB)
Index Stops		Fixed
Depth Behind Panel		13.64mm
Voltage Rating - AC		115 V
Voltage Rating - DC		28 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		50EMP36-01B04S

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9020
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
