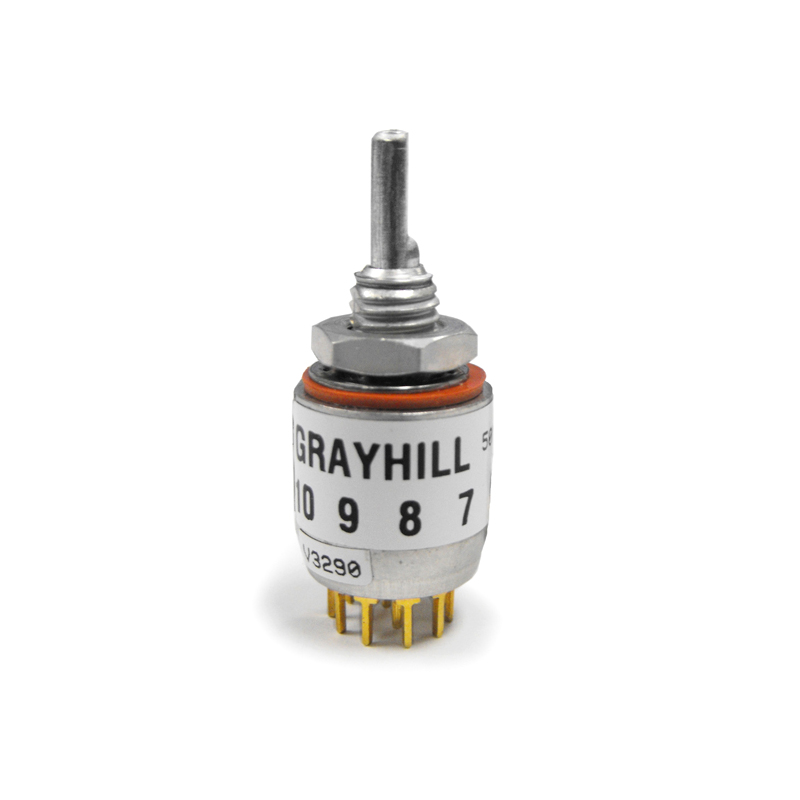

50C90-01-1-03N

50C90-01-1-03N

Part Number	50C90-01-1-03N
Manufacturer	Grayhill, Inc.
Other Part Numbers	50C90-01-1-03N-ND
Description	SWITCH ROTARY 3POS 150MA 115V
Detailed Description	Rotary Switch 3 Position SP3T 150mA (AC), 200mA (DC) 115 VAC Panel Mount
Datasheet	Datasheet

Product Attributes

Category		Switches Rotary Switches
Manufacturer		Grayhill, Inc.
Series		50
Packaging		Bulk
Part Status		Active
Contact Finish		Gold
Current Rating (Amps)		150mA (AC), 200mA (DC)
Mounting Type		Panel Mount
Number of Positions		3
Termination Style		Solder Lug
Actuator Length		9.53mm
Actuator Type		Flatted (3.17mm Dia)
Angle of Throw		90°
Number of Decks		1
Number of Poles per Deck		1
Circuit per Deck		SP3T
Contact Timing		Non-Shorting (BBM)
Index Stops		Fixed
Depth Behind Panel		18.77mm
Voltage Rating - AC		115 V
Voltage Rating - DC		28 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		50C90-01-1-03N

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9020
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
