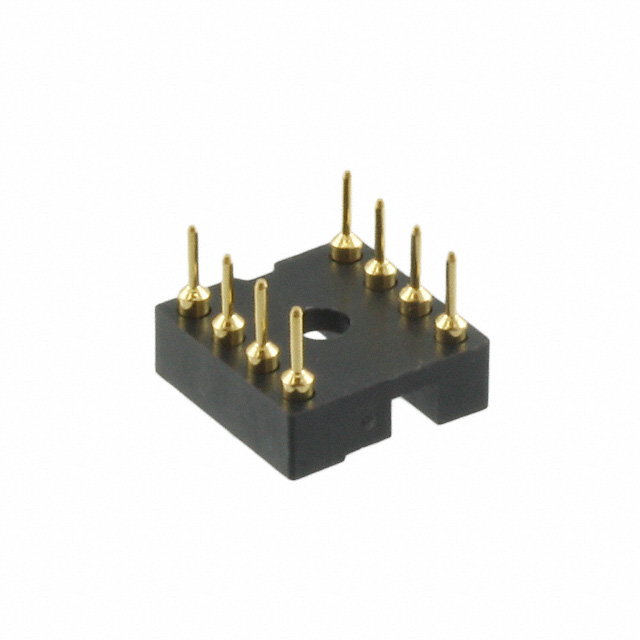

508-AG10D-ES _ IC Sockets_Sockets for ICs, Transistors_Connectors, Interconnects

Part Number	508-AG10D-ES
Manufacturer	TE Connectivity AMP Connectors
Other Part Numbers	508-AG10D-ES-ND 2266-508-AG10D-ES 1-1437535-2 1-1437535-2-ND
Description	CONN IC DIP SOCKET 8POS GOLD
Detailed Description	8 (2 x 4) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
Datasheet	Datasheet

Category		Connectors, Interconnects Sockets for ICs, Transistors IC Sockets
Manufacturer		TE Connectivity AMP Connectors
Series		500
Packaging		Bulk
Part Status		Obsolete
Features		Closed Frame
Mounting Type		Through Hole
Type		DIP, 0.3" (7.62mm) Row Spacing
Operating Temperature		-55°C ~ 125°C
Number of Positions or Pins (Grid)		8 (2 x 4)
Termination		Solder
Material Flammability Rating		UL94 V-0
Housing Material		Polyester
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		25.0µin (0.63µm)
Contact Material - Mating		Copper Alloy
Pitch - Post		0.100" (2.54mm)
Contact Finish - Post		Gold
Contact Finish Thickness - Post		25.0µin (0.63µm)
Contact Material - Post		Copper Alloy
Termination Post Length		0.125" (3.18mm)
Contact Resistance		10mOhm

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		Vendor Undefined
RoHS Status		RoHS Compliant

This product is no longer manufactured.
