Part Number |
506WLSN6R00KT236T
|
---|---|
Manufacturer | American Technical Ceramics |
Other Part Numbers |
1284-506WLSN6R00KT236TTR-ND
1284-506WLSN6R00KT236TCT-ND
1284-506WLSN6R00KT236TDKR-ND
1284-1323-2-ND
1284-506WLSN6R00KT236TCT
1284-1323-6
1284-1323-1-ND
1284-1323-2
1284-506WLSN6R00KT236TDKR
506WLSN6R00KT236T\100
1284-1323-1
ATC506WLSN6R00KT236T
1284-1323-6-ND
1284-506WLSN6R00KT236TTR
|

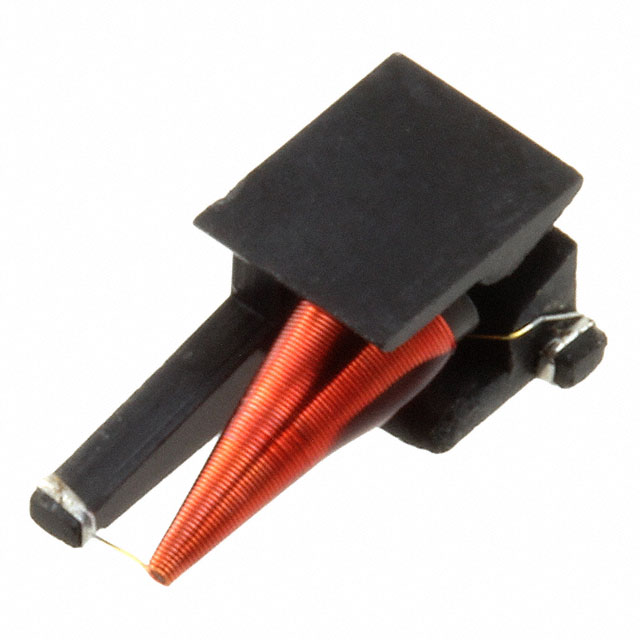

Description | FIXED IND 6UH 236MA 2.8 OHM SMD |
Detailed Description | 6 µH Unshielded Drum Core, Wirewound Inductor 236 mA 2.8Ohm Nonstandard |
Manufacturer Standard Lead Time | 20 weeks |
Category | ||
---|---|---|
Manufacturer | American Technical Ceramics | |
Series |
506WLS
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
|
|
Part Status | Active | |
Tolerance | ±10% | |
Package / Case | Nonstandard | |
Size / Dimension | 0.245" L x 0.133" W (6.22mm x 3.38mm) | |
Mounting Type | Surface Mount | |
Shielding | Unshielded | |
Type | Drum Core, Wirewound | |
Operating Temperature | -55°C ~ 125°C | |
DC Resistance (DCR) | 2.8Ohm | |
Material - Core | Iron Powder | |
Inductance Frequency - Test | 1 MHz | |
Height - Seated (Max) | 0.117" (2.97mm) | |
Inductance | 6 µH | |
Current Rating (Amps) | 236 mA |
RESOURCE TYPE | LINK |
---|
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8504.50.8000 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
