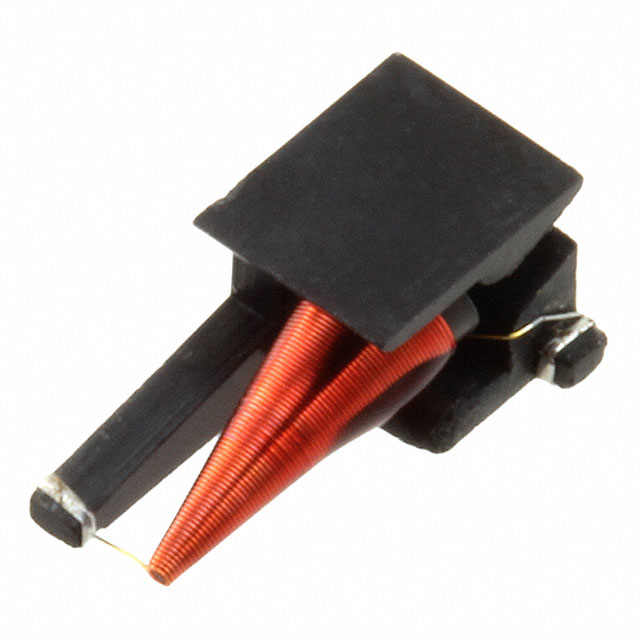

506WLSN1R47KT694T

Part Number
506WLSN1R47KT694T
Manufacturer American Technical Ceramics
Other Part Numbers
478-506WLSN1R47KT694TTR-ND
478-506WLSN1R47KT694TCT-ND
478-506WLSN1R47KT694TDKR-ND
ATC506WLSN1R47KT694T
1284-1320-2-ND
1284-1320-1-ND
1284-1320-6
1284-1320-6-ND
478-506WLSN1R47KT694TCT
1284-1320-2
1284-1320-1
478-506WLSN1R47KT694TDKR
478-506WLSN1R47KT694TTR
506WLSN1R47KT694T\100
Description FIXED IND 1.47UH 694MA 330 MOHM
Detailed Description 1.47 µH Unshielded Drum Core, Wirewound Inductor 694 mA 330mOhm Nonstandard
Manufacturer Standard Lead Time 20 weeks

Product Attributes

Category
Manufacturer American Technical Ceramics
Series
506WLS
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Tolerance ±10%
Package / Case Nonstandard
Size / Dimension 0.245" L x 0.133" W (6.22mm x 3.38mm)
Mounting Type Surface Mount
Shielding Unshielded
Type Drum Core, Wirewound
Operating Temperature -55°C ~ 125°C
DC Resistance (DCR) 330mOhm
Material - Core Iron Powder
Inductance Frequency - Test 1 MHz
Height - Seated (Max) 0.117" (2.97mm)
Inductance 1.47 µH
Current Rating (Amps) 694 mA

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Available To Order
