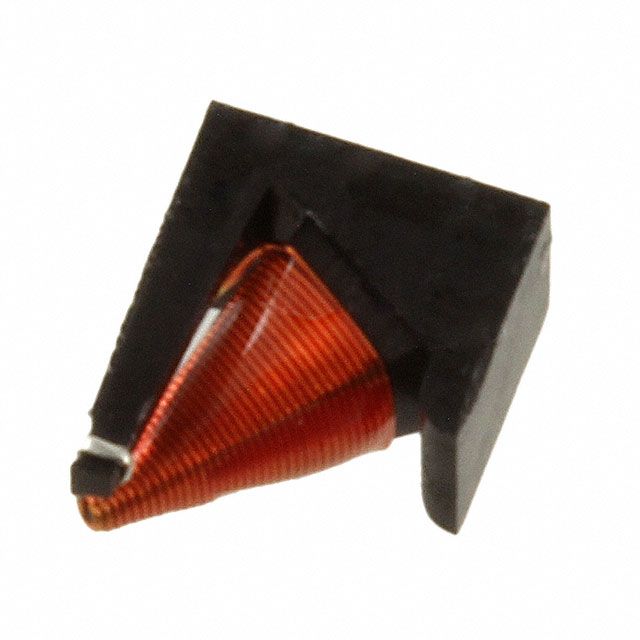

506WLSM1R10KT438T

506WLSM1R10KT438T

Part Number	506WLSM1R10KT438T
Manufacturer	American Technical Ceramics
Other Part Numbers	1284-1317-2-ND 1284-1317-1-ND 1284-1317-6-ND 1284-1317-2 1284-1317-1 506WLSM1R10KT438T\100 ATC506WLSM1R10KT438T 1284-1317-6
Description	FIXED IND 1.1UH 438MA 640MOHM SM
Detailed Description	1.1 µH Unshielded Drum Core, Wirewound Inductor 438 mA 640mOhm Nonstandard
Manufacturer Standard Lead Time	14 weeks

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		American Technical Ceramics
Series		506WLS
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±10%
Package / Case		Nonstandard
Size / Dimension		0.127" L x 0.080" W (3.23mm x 2.03mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Drum Core, Wirewound
Operating Temperature		-55°C ~ 125°C
DC Resistance (DCR)		640mOhm
Material - Core		Iron Powder
Inductance Frequency - Test		1 MHz
Height - Seated (Max)		0.105" (2.67mm)
Inductance		1.1 µH
Current Rating (Amps)		438 mA

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1456

Can ship immediately.
