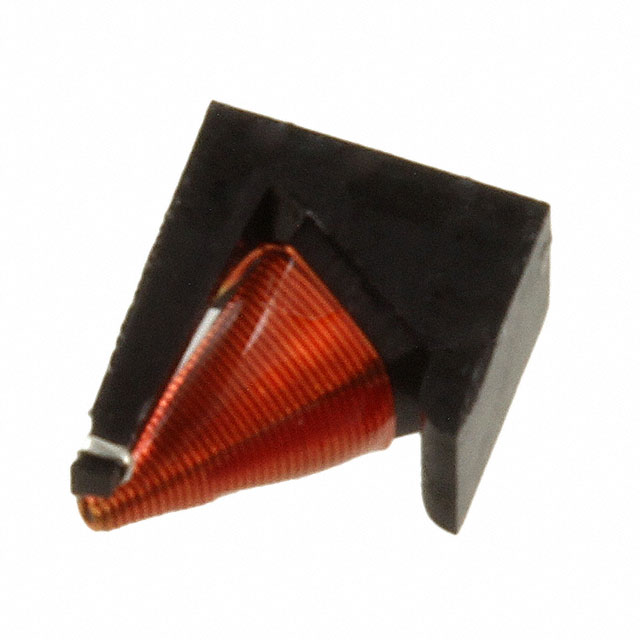

506WLSM0R70KT619T

506WLSM0R70KT619T

Part Number	506WLSM0R70KT619T
Manufacturer	American Technical Ceramics
Other Part Numbers	1284-1316-2-ND 1284-1316-1-ND 1284-1316-6-ND 1284-1316-2 1284-1316-1 ATC506WLSM0R70KT619T 506WLSM0R70KT619T\100 1284-1316-6
Description	FIXED IND 700NH 619MA 320MOHM SM
Detailed Description	700 nH Unshielded Drum Core, Wirewound Inductor 619 mA 320mOhm Nonstandard
Manufacturer Standard Lead Time	20 weeks

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		American Technical Ceramics
Series		506WLS
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±10%
Package / Case		Nonstandard
Size / Dimension		0.127" L x 0.080" W (3.23mm x 2.03mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Drum Core, Wirewound
Operating Temperature		-55°C ~ 125°C
DC Resistance (DCR)		320mOhm
Material - Core		Iron Powder
Inductance Frequency - Test		1 MHz
Height - Seated (Max)		0.105" (2.67mm)
Inductance		700 nH
Current Rating (Amps)		619 mA

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 4641

Can ship immediately.
