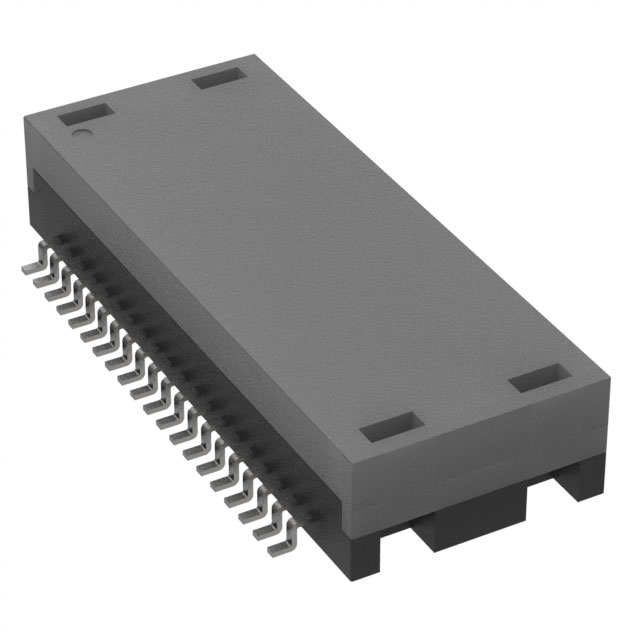

5-2337826-1

5-2337826-1

Part Number	5-2337826-1
Manufacturer	TE Connectivity AMP Connectors
Other Part Numbers	5-2337826-1-ND
Description	AUDIO XFMR SMD
Detailed Description	Impedance Primary Ohms Impedance Secondary Ohms 1CT:1CT Audio Transformer Surface Mount
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Product Attributes

Category		Transformers Audio Transformers
Manufacturer		TE Connectivity AMP Connectors
Series
Packaging		Tube
Part Status		Active
Size / Dimension		1.232" L x 0.482" W (31.30mm x 12.25mm)
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 105°C
Termination Style		Gull Wing
Turns Ratio - Primary:Secondary		1CT:1CT
Insertion Loss		-1dB Max @ 100kHz ~ 100MHz
Voltage - Isolation		1500Vrms
Return Loss		-18dB Min @ 1MHz ~ 30MHz
Height - Seated (Max)		0.285" (7.24mm)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		5-2337826-1
Datasheets		Discrete Magnetics Datasheet

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		Vendor Undefined
