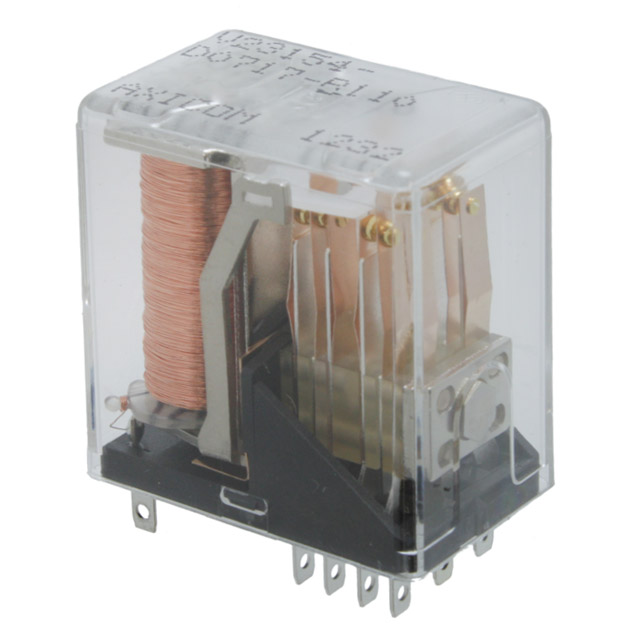

5-1393808-3

5-1393808-3

Part Number	5-1393808-3
Manufacturer	TE Connectivity Potter & Brumfield Relays
Other Part Numbers	5-1393808-3-ND V23154D717C110
Description	RELAY GEN PURPOSE 4PDT 2A 12V
Detailed Description	General Purpose Relay 4PDT (4 Form C) Socketable
Datasheet	Datasheet

Product Attributes

Category		Relays Signal Relays, Up to 2 Amps
Manufacturer		TE Connectivity Potter & Brumfield Relays
Series		V23154, AXICOM
Packaging		Bulk
Part Status		Active
Mounting Type		Socketable
Coil Voltage		12VDC
Operating Temperature		-40°C ~ 70°C
Termination Style		Plug In
Relay Type		General Purpose
Coil Current		54.5 mA
Coil Type		Non Latching
Contact Material		Silver (Ag), Gold (Au)
Contact Form		4PDT (4 Form C)
Contact Rating (Current)		2 A
Switching Voltage		125VAC, 150VDC - Max
Must Operate Voltage		10.5 VDC
Operate Time		7.5 ms
Release Time		3 ms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		5-1393808-3
Datasheets		5-1393808-3 Statement of Compliance

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.41.0020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		Vendor Undefined
RoHS Status		ROHS3 Compliant
