4DIR1400HAXUMA1 _ Digital Isolators_Isolators

Part Number	4DIR1400HAXUMA1
Manufacturer	IR (Infineon Technologies)
Other Part Numbers	448-4DIR1400HAXUMA1TR-ND 448-4DIR1400HAXUMA1CT-ND 448-4DIR1400HAXUMA1DKR-ND 448-4DIR1400HAXUMA1CT 448-4DIR1400HAXUMA1TR SP005850920 448-4DIR1400HAXUMA1DKR
Description	DIGITAL ISOLATORS
Detailed Description	SPI Digital Isolator 5700Vrms 4 Channel 40Mbps 100kV/µs CMTI 16-SOIC (0.154", 3.90mm Width)
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Category		Isolators Digital Isolators
Manufacturer		IR (Infineon Technologies)
Series		ISOFACE™
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

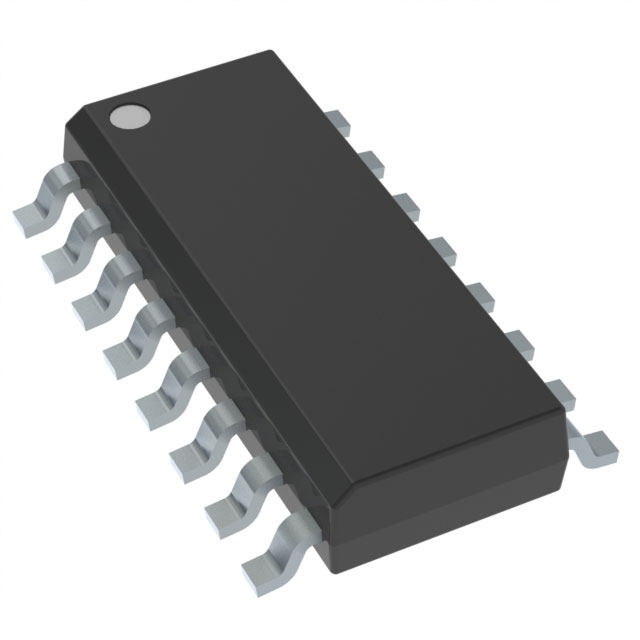

Package / Case		16-SOIC (0.154", 3.90mm Width)
Mounting Type		Surface Mount
Type		SPI
Operating Temperature		-40°C ~ 125°C
Voltage - Supply		2.7V ~ 6.5V
Data Rate		40Mbps
Technology		Magnetic Coupling
Voltage - Isolation		5700Vrms
Inputs - Side 1/Side 2		3/1
Supplier Device Package		PG-DSO-16
Rise / Fall Time (Typ)		4ns, 4ns (Max)
Common Mode Transient Immunity (Min)		100kV/µs
Propagation Delay tpLH / tpHL (Max)		33ns, 33ns
Isolated Power		Yes
Channel Type		Unidirectional
Pulse Width Distortion (Max)		3ns
Grade		Automotive
Number of Channels		4
Qualification		AEC-Q100

RESOURCE TYPE		LINK
Datasheets		4DIR1400HAXUMA1

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
