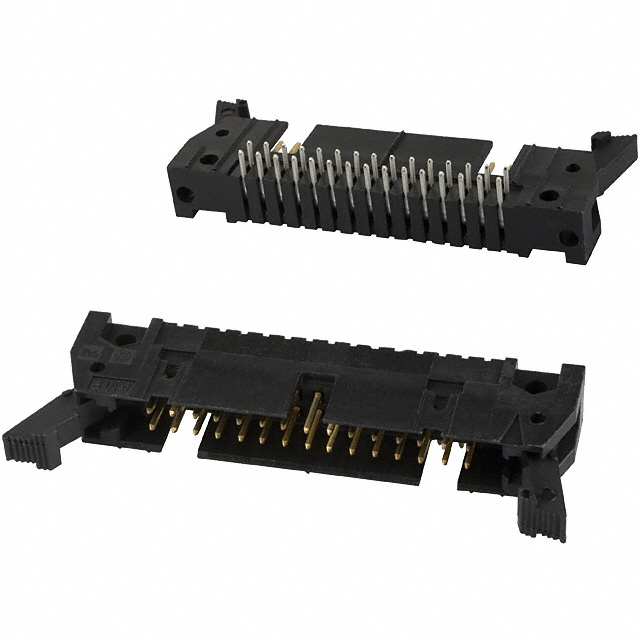

499913-7 _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	499913-7
Manufacturer	TE Connectivity AMP Connectors
Other Part Numbers	AHB30G-ND 499913-7-ND AHB30G
Description	CONN HEADER R/A 30POS 2.54MM
Detailed Description	Connector Header Through Hole, Right Angle 30 position 0.100" (2.54mm)
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		TE Connectivity AMP Connectors
Series		AMP-Latch
Packaging		Tray
Part Status		Active
Features		Keying Slot, Mounting Flange
Connector Type		Header
Voltage Rating		250VAC
Current Rating (Amps)		1A per Contact
Mounting Type		Through Hole, Right Angle
Number of Positions		30
Number of Rows		2
Style		Board to Cable/Wire
Operating Temperature		-65°C ~ 105°C
Contact Type		Male Pin
Fastening Type		Latch Lock/Eject Hooks, Short
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Brass
Insulation Color		Black
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Gold or Gold-Palladium
Contact Finish Thickness - Mating		15.0µin (0.38µm)
Contact Finish - Post		Tin-Lead
Contact Finish Thickness - Post		100.0µin (2.54µm)
Contact Shape		Square
Contact Length - Post		0.110" (2.79mm)
Insulation Height		0.315" (8.00mm)
Shrouding		Shrouded - 4 Wall
Row Spacing - Mating		0.100" (2.54mm)
Contact Length - Mating		0.240" (6.10mm)

RESOURCE TYPE		LINK
Datasheets		499913-7

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		RoHS non-compliant
