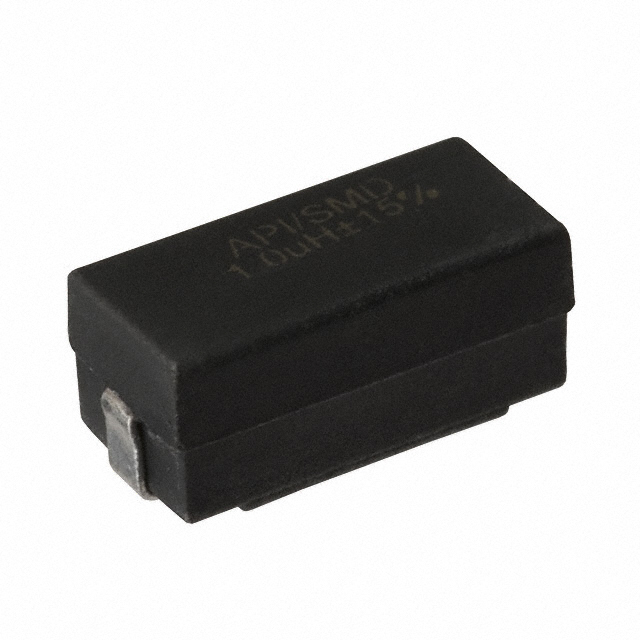

4922-29L

Part Number
4922-29L
Manufacturer API Delevan
Other Part Numbers
DN2229TR-ND
492229L
DN2229CT
4922-29LTR
4922-29L TR 800
DN2229TR
Description FIXED IND 220UH 500MA 1.58OHM SM
Detailed Description 220 µH Unshielded Drum Core, Wirewound Inductor 500 mA 1.58Ohm Max Nonstandard
Manufacturer Standard Lead Time 7 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer API Delevan
Series
4922
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±15%
Package / Case Nonstandard
Size / Dimension 0.505" L x 0.240" W (12.82mm x 6.09mm)
Mounting Type Surface Mount
Shielding Unshielded
Type Drum Core, Wirewound
Operating Temperature -55°C ~ 125°C
DC Resistance (DCR) 1.58Ohm Max
Current - Saturation (Isat) 500mA
Material - Core Ferrite
Inductance Frequency - Test 1 kHz
Height - Seated (Max) 0.230" (5.84mm)
Inductance 220 µH
Current Rating (Amps) 500 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets 4922-29L
Datasheets Multiple Series Marking 05/Sep/2018

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS non-compliant
