45-21/QK2C-B3845AC2CB2/2T _ LED Indication

Part Number	45-21/QK2C-B3845AC2CB2/2T
Manufacturer	Everlight Electronics
Other Part Numbers	1080-1210-2-ND 1080-1210-1-ND 1080-1210-6-ND 1080-1210-2 4521QK2CB3845AC2CB22T 1080-1210-1 1080-1210-6 4521/QK2CB3845AC2CB2/2T

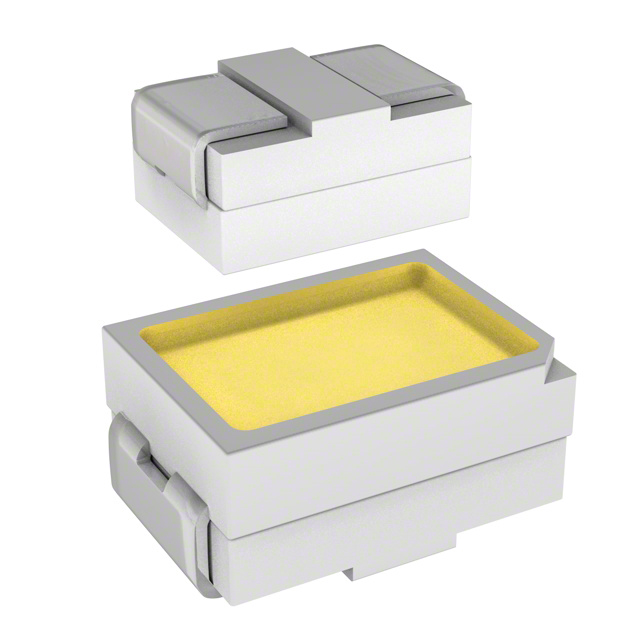

Description	LED WHITE/NEUTRAL DIFF 2PLCC SMD
Detailed Description	White, Neutral 3800K ~ 4500K LED Indication - Discrete 3.25V 2-SMD, J-Lead

Category		Optoelectronics LED Indication - Discrete
Manufacturer		Everlight Electronics
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Obsolete
Package / Case		2-SMD, J-Lead
Color		White, Neutral
Size / Dimension		2.70mm L x 2.00mm W
Mounting Type		Surface Mount
Millicandela Rating		2000mcd
Configuration		Standard
Voltage - Forward (Vf) (Typ)		3.25V
Lens Color		Yellow
Current - Test		20mA
Viewing Angle		120°
Height (Max)		1.30mm
Wavelength - Dominant		3800K ~ 4500K
Supplier Device Package		2-PLCC
Lens Transparency		Diffused
Lens Style		Rectangle with Flat Top

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.41.0000
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected

This product is no longer manufactured.
