44A1121-22-2/6-9-MX _ Multiple Conductor Cables_Cables, Wires

Part Number	44A1121-22-2/6-9-MX
Manufacturer	TE Connectivity Aerospace Defense and Marine
Other Part Numbers	A132129-100-ND A132129-100

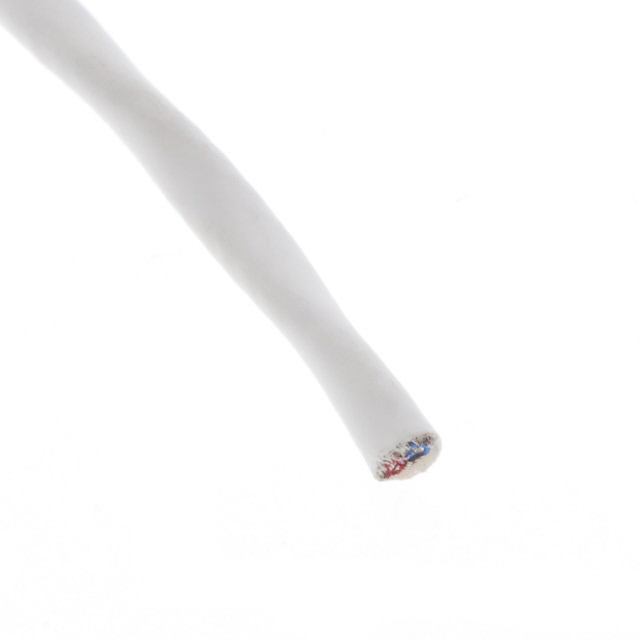

Description	CABLE 2CON 22AWG WHT SHLD 100'
Detailed Description	2 Conductor Multi-Conductor Cable White 22 AWG Braid 100.0' (30.5m)
Datasheet	Datasheet

Category		Cables, Wires Multiple Conductor Cables
Manufacturer		TE Connectivity Aerospace Defense and Marine
Series
Packaging		Bulk
Part Status		Discontinued
Length		100.0' (30.5m)
Wire Gauge		22 AWG
Jacket (Insulation) Material		Polyvinylidene Fluoride (PVDF)
Conductor Strand		19/34
Operating Temperature		150°C
Number of Conductors		2
Cable Type		Multi-Conductor
Jacket (Insulation) Diameter		0.132" (3.35mm)
Conductor Insulation		Polyvinylidene Fluoride (PVDF)
Jacket (Insulation) Thickness		0.0080" (0.203mm)
Shield Coverage		85%
Shield Material		Copper, Tinned
Shield Type		Braid
Conductor Material		Copper, Tinned
Jacket Color		White
Voltage		600 V

RESOURCE TYPE		LINK
Datasheets		44A1121-22-2/6-9-MX

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8544.49.3080
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer for sale.
