Part Number |
44A0111-20-0-MX
|
---|---|
Manufacturer | TE Connectivity Aerospace Defense and Marine |
Other Part Numbers |
A132376-05-ND
A132376-05
|

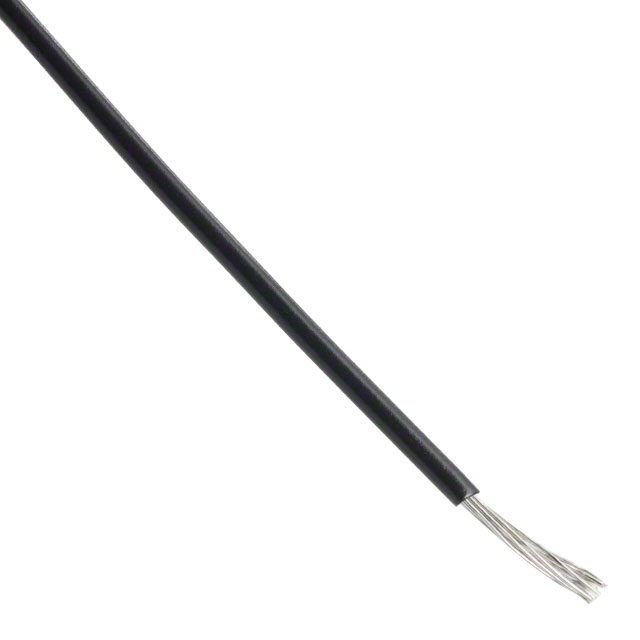

Description | HOOK-UP DL STRND 20AWG BLACK 5' |
Detailed Description | 20 AWG Hook-Up, Dual Wall Wire 19/32 Black 600V 5.00' (1.52m) |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | TE Connectivity Aerospace Defense and Marine | |
Series |
44A0111
|
|
Packaging |
Bulk
|
|
Part Status | Discontinued | |
Voltage | 600V | |
Length | 5.00' (1.52m) | |
Wire Gauge | 20 AWG | |
Jacket (Insulation) Material | Polyvinylidene Fluoride (PVDF) | |
Conductor Strand | 19/32 | |
Operating Temperature | -65°C ~ 150°C | |
Cable Type | Hook-Up, Dual Wall | |
Jacket (Insulation) Diameter | 0.055" (1.40mm) | |
Jacket (Insulation) Thickness | 0.0031" (0.080mm) | |
Conductor Material | Copper, Tinned | |
Jacket Color | Black | |
Qualification | MIL-W-81044 and MIL-C-27500 |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | 44A0111-20-0-MX |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8544.49.3080 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
