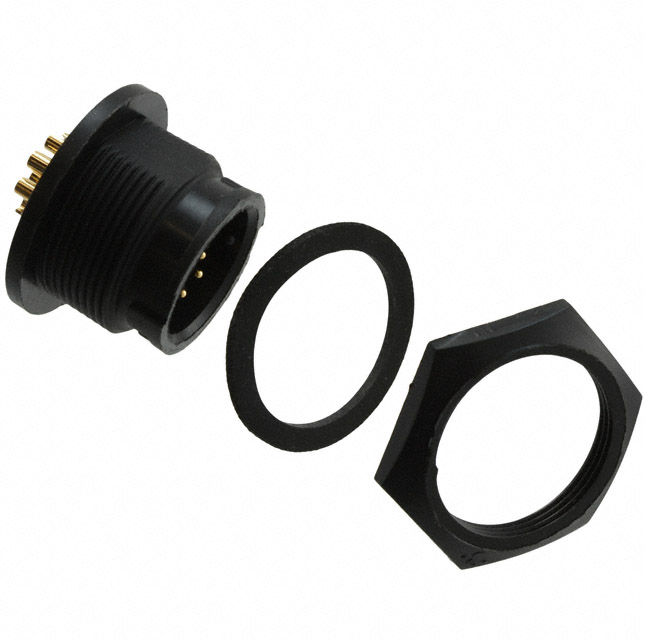

4282-9PG-300 _ Circular Connector Assemblies_Circular Connectors_Connectors, Interconnects

Part Number	4282-9PG-300
Manufacturer	Conxall/Switchcraft
Other Part Numbers	SC1244-ND 42829PG300 SC1244
Description	CONN RCPT MALE 9P GOLD SLDR CUP
Detailed Description	9 Position Circular Connector Receptacle, Male Pins Solder Cup
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Circular Connectors Circular Connector Assemblies
Manufacturer		Conxall/Switchcraft
Series		Multi-Con-X®
Packaging		Bulk
Part Status		Active
Connector Type		Receptacle, Male Pins
Color		Black
Voltage Rating		600V
Current Rating (Amps)		5.6A
Mounting Type		Panel Mount
Shielding		Unshielded
Number of Positions		9
Orientation		Keyed
Operating Temperature		-40°C ~ 115°C
Fastening Type		Bayonet Lock
Termination		Solder Cup
Ingress Protection		Weathertight
Mounting Feature		Bulkhead - Front Side Nut
Contact Material		Brass
Contact Finish - Mating		Gold
Shell Material		Polyamide (PA), Nylon
Primary Material		Plastic

RESOURCE TYPE		LINK
Datasheets		4282-9PG-300
Datasheets		Multi-Con-X Sealed Connectors and Cables
Datasheets		Conxall RoHS Cert
Datasheets		Switchcraft RoHS Cert

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4020
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
