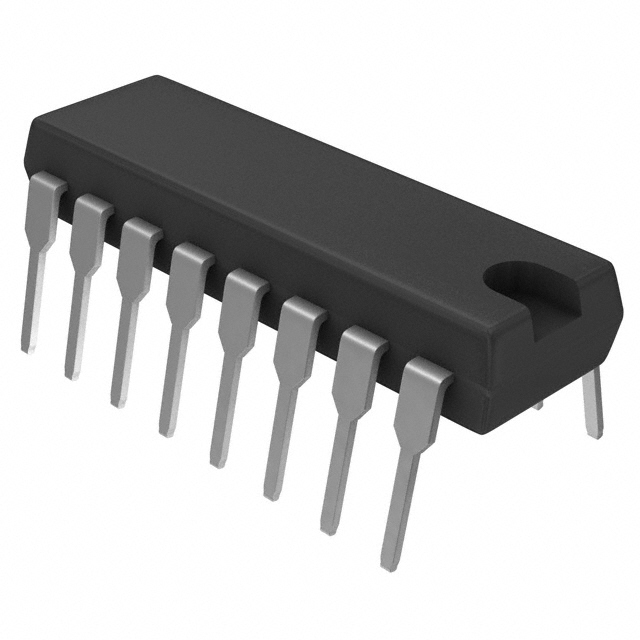

4116R-1-151

4116R-1-151

Part Number	4116R-1-151
Manufacturer	J.W. Miller / Bourns
Other Part Numbers	4116R-1-151-ND 4116R-001-151 4116R1151
Description	RES ARRAY 8 RES 150 OHM 16DIP
Detailed Description	150 Ohm ±2% 250mW Power Per Element Isolated 8 Resistor Network/Array ±100ppm/°C 16-DIP (0.300", 7.62mm)
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Product Attributes

Category		Resistors Resistor Networks, Arrays
Manufacturer		J.W. Miller / Bourns
Series		4100R
Packaging		Tube
Part Status		Active
Resistance (Ohms)		150
Tolerance		±2%
Power Per Element		250mW
Circuit Type		Isolated
Number of Pins		16
Package / Case		16-DIP (0.300", 7.62mm)
Temperature Coefficient		±100ppm/°C
Size / Dimension		0.865" L x 0.300" W (21.97mm x 7.62mm)
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 125°C
Supplier Device Package		16-DIP
Height - Seated (Max)		0.185" (4.69mm)
Resistor-Ratio-Drift		50ppm/°C
Number of Resistors		8

Documents & Media

RESOURCE TYPE		LINK
Datasheets		4116R-1-151
Datasheets		Bourns REACH
Datasheets		41xx,43xx,44x,48xx Model May 2012
Datasheets		4(1,8)00 Series Circuit Isolated
Datasheets		4100 Series Side 1

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8533.21.0060
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Affected
RoHS Status		RoHS non-compliant

In Stock: 1874

Can ship immediately.
