4076

Part Number
4076
Manufacturer Adafruit
Other Part Numbers
1528-2835-ND
MDBT40-256RV3
1528-2835

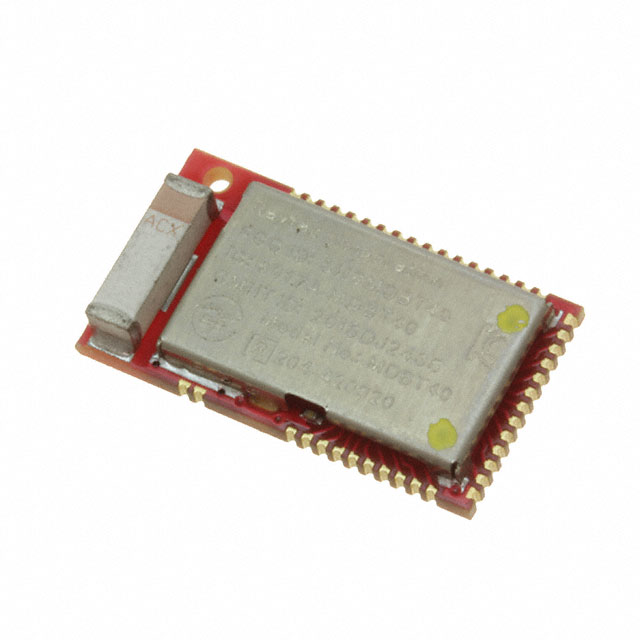

Description RF TXRX MODULE BT CHIP SMD
Detailed Description Bluetooth Bluetooth v4.2 Transceiver Module 2.4GHz ~ 2.483GHz Integrated, Chip Surface Mount
Manufacturer Standard Lead Time 6 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Adafruit
Series
Packaging
Bulk
Part Status Active
Package / Case 42-SMD Module
Sensitivity -93dBm
Mounting Type Surface Mount
Frequency 2.4GHz ~ 2.483GHz
Memory Size 256kB Flash, 32kB RAM
Operating Temperature -40°C ~ 105°C
Voltage - Supply 1.8V ~ 3.6V
Power - Output 4dBm
Data Rate 2Mbps
Protocol Bluetooth v4.2
Current - Receiving 13.4mA
Current - Transmitting 16mA
Antenna Type Integrated, Chip
Utilized IC / Part nRF51822
RF Family/Standard Bluetooth
Serial Interfaces I2C, PWM, SPI, UART
DigiKey Programmable Not Verified

Documents & Media

RESOURCE TYPE LINK
Datasheets 4076

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN 5A992C
HTSUS 8517.62.0090
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status Vendor Undefined
RoHS Status ROHS3 Compliant

In Stock: 24

Can ship immediately.
