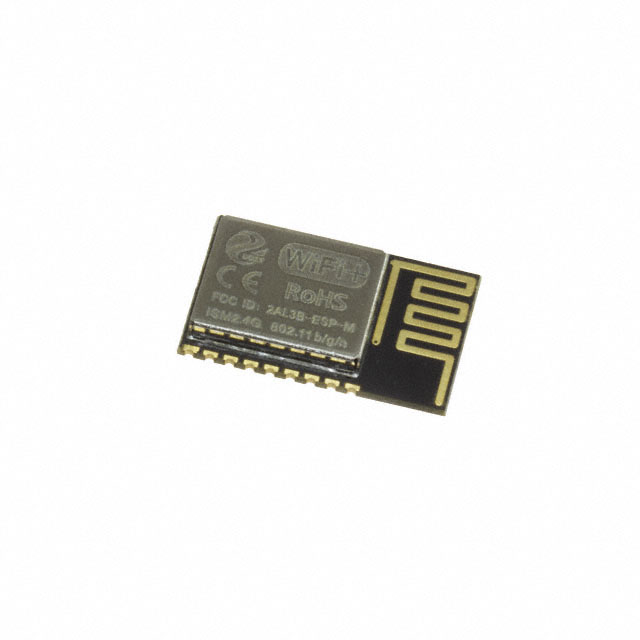

4065 _ RF Transceiver Modules and Modems_RF and Wireless

Part Number	4065
Manufacturer	Adafruit
Other Part Numbers	1528-2850-ND 1528-2850
Description	RF TXRX MOD WIFI TRACE ANT SMD
Detailed Description	WiFi 802.11b/g/n Transceiver Module 2.412GHz ~ 2.484GHz Integrated, Trace Surface Mount
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Category		RF and Wireless RF Transceiver Modules and Modems
Manufacturer		Adafruit
Series
Packaging		Bulk
Part Status		Active
Package / Case		16-SMD Module
Sensitivity		-98dBm
Mounting Type		Surface Mount
Frequency		2.412GHz ~ 2.484GHz
Memory Size		1MB Flash
Operating Temperature		-40°C ~ 125°C
Voltage - Supply		2.5V ~ 3.6V
Power - Output		21.5dBm
Data Rate		72.2Mbps
Protocol		802.11b/g/n
Current - Receiving		50mA ~ 56mA
Current - Transmitting		120mA ~ 170mA
Antenna Type		Integrated, Trace
Utilized IC / Part		ESP8266
Modulation		64-QAM, BPSK, CCK, DSSS, OFDM
RF Family/Standard		WiFi
Serial Interfaces		ADC, GPIO, I2C, I2S, PWM, SDIO, SPI, UART, USB
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK
Datasheets		4065

ATTRIBUTE		DESCRIPTION
ECCN		5A992C SC
HTSUS		8517.62.0090
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

Can ship immediately.
