40174BDM _ Flip Flops_Logic_Integrated Circuits (ICs)

Part Number	40174BDM
Manufacturer	National Semiconductor
Other Part Numbers	2156-40174BDM-ND NATNSC40174BDM 2156-40174BDM
Description	6-FUNC, POSITIVE EDGE TRIGGERED
Detailed Description	Flip Flop 1 Element D-Type 6 Bit Positive Edge 16-CDIP (0.300", 7.62mm)

Category		Integrated Circuits (ICs) Logic Flip Flops
Manufacturer		National Semiconductor
Series
Packaging		Bulk
Part Status		Active

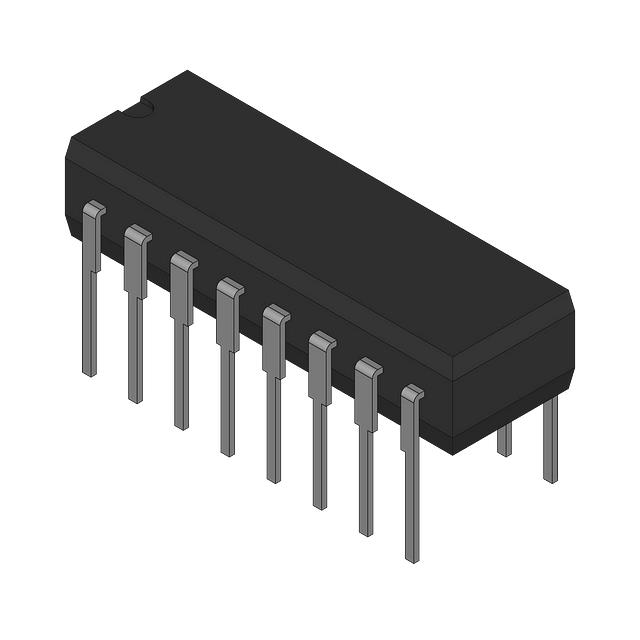

Package / Case		16-CDIP (0.300", 7.62mm)
Output Type		Non-Inverted
Mounting Type		Through Hole
Number of Elements		1
Function		Master Reset
Type		D-Type
Operating Temperature		-55°C ~ 125°C (TA)
Voltage - Supply		3V ~ 18V
Current - Quiescent (Iq)		20 µA
Current - Output High, Low		6.8mA, 6.8mA
Trigger Type		Positive Edge
Clock Frequency		16 MHz
Input Capacitance		25 pF
Supplier Device Package		16-CDIP
Max Propagation Delay @ V, Max CL		100ns @ 15V, 50pF
Number of Bits per Element		6

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		Vendor Undefined
RoHS Status		Not applicable
