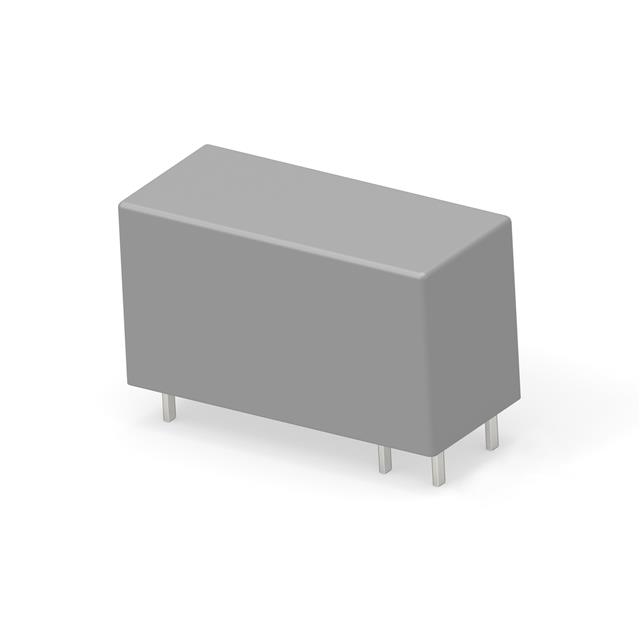

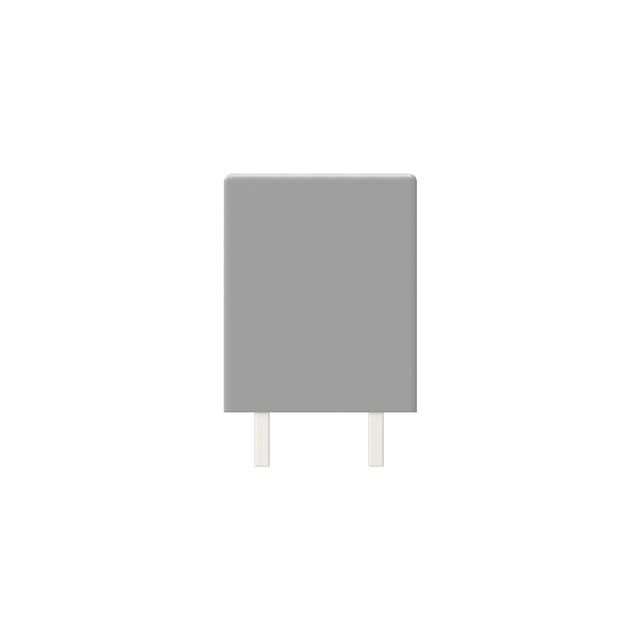

4-1419136-1 _ Power Relays, Over 2 Amps_Relays

Part Number	4-1419136-1
Manufacturer	TE Connectivity Potter & Brumfield Relays
Other Part Numbers	PB2505-ND RT33LF05 PB2505 -4-1419136-1-SI 4-1419136-1-ND
Description	RELAY GEN PURPOSE SPST 16A 5V
Detailed Description	General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Manufacturer Standard Lead Time	17 weeks

Category		Relays Power Relays, Over 2 Amps
Manufacturer		TE Connectivity Potter & Brumfield Relays
Series		RT1, SCHRACK
Packaging		Bulk
Part Status		Active
Mounting Type		Through Hole
Coil Voltage		5VDC
Operating Temperature		-40°C ~ 85°C
Termination Style		PC Pin
Relay Type		General Purpose
Coil Current		119 mA
Coil Type		Latching, Dual Coil
Seal Rating		Sealed - Flux Protection
Contact Material		Silver Tin Oxide (AgSnO)
Contact Form		SPST-NO (1 Form A)
Contact Rating (Current)		16 A
Switching Voltage		400VAC - Max
Must Release Voltage		2.8 VDC
Must Operate Voltage		3.5 VDC
Operate Time		10 ms
Release Time		10 ms
Coil Resistance		42 Ohms
Coil Insulation		Class F

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.41.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
