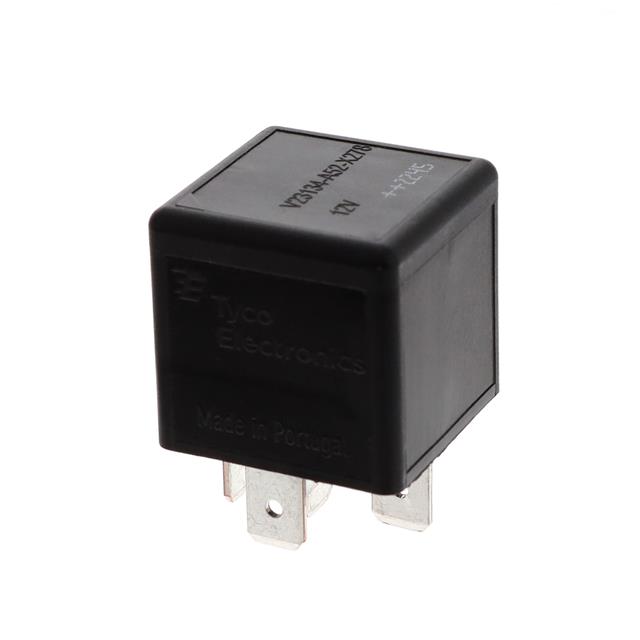

4-1393302-1

4-1393302-1

Part Number	4-1393302-1
Manufacturer	TE Connectivity AMP Connectors
Other Part Numbers	17-4-1393302-1-ND 4-1393302-1-ND 3937-4-1393302-1 17-4-1393302-1
Description	POWER F V23134
Manufacturer Standard Lead Time	23 weeks
Datasheet	Datasheet

Product Attributes

Category		Relays Automotive Relays
Manufacturer		TE Connectivity AMP Connectors
Series		V23134, AXICOM
Packaging		Bulk
Part Status		Active
Mounting Type		Socketable
Coil Voltage		12VDC
Operating Temperature		-40°C ~ 125°C
Termination Style		Plug In, Quick Connect - 0.250" (6.3mm)
Coil Current		133.3 mA
Coil Type		Non Latching
Contact Form		SPDT (1 Form C)
Contact Rating (Current)		60 A
Switching Voltage		14VDC - Nom
Must Release Voltage		1.6 VDC
Must Operate Voltage		7.2 VDC
Operate Time		7 ms
Release Time		2 ms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		V23134-A0052-X278-CD Drawing

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.41.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 171

Can ship immediately.
