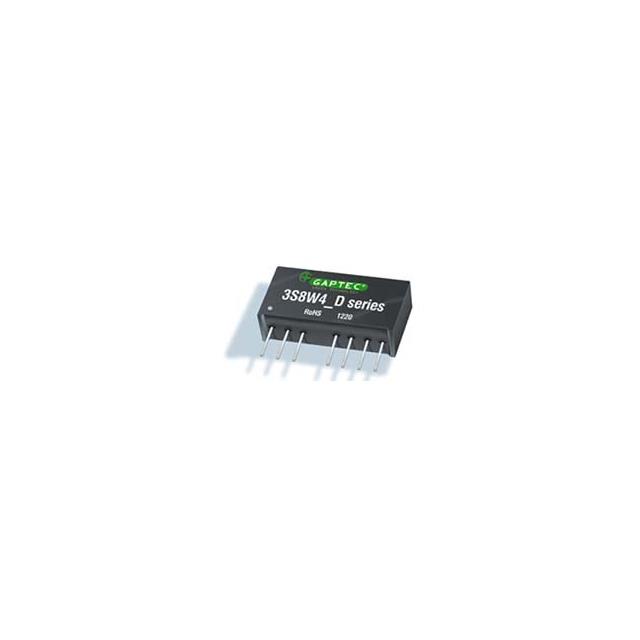

3S8W4_4803S2RP

Part Number
3S8W4_4803S2RP
Manufacturer GAPTEC Electronic
Other Part Numbers
3182-3S8W4_4803S2RP-ND
3182-3S8W4_4803S2RPDKR-ND
3182-3S8W4_4803S2RPCT
3182-3S8W4_4803S2RPCT-ND
3182-3S8W4_4803S2RPDKR
3182-3S8W4_4803S2RPTR
3182-3S8W4_4803S2RPCTINACTIVE
3182-3S8W4_4803S2RPTR-ND
3182-3S8W4_4803S2RP-ND
3182-3S8W4_4803S2RPDKRINACTIVE
3182-3S8W4_4803S2RP
Description DC-DC INDUSTRIAL
Detailed Description Isolated Module DC DC Converter 1 Output 3.3V 600mA 18V - 75V Input
Manufacturer Standard Lead Time 6 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer GAPTEC Electronic
Series
3S8W4_2RP&3S8W4_4RP (3W)
Packaging
Tape & Reel (TR)
Part Status Active
Package / Case 8-SIP Module, 7 Leads
Size / Dimension 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Mounting Type Through Hole
Type Isolated Module
Operating Temperature -40°C ~ 100°C (With Derating)
Applications ITE (Commercial)
Voltage - Input (Max) 75V
Efficiency 80%
Current - Output (Max) 600mA
Voltage - Input (Min) 18V
Voltage - Output 1 3.3V
Power (Watts) 1.98 W
Number of Outputs 1
Voltage - Isolation 2 kV

Documents & Media

RESOURCE TYPE LINK
Datasheets 3S8W4_4803S2RP

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.40.9580
Moisture Sensitivity Level (MSL) Not Applicable
RoHS Status ROHS3 Compliant
