3FL12-200 _ Power Transformers_Transformers_

+86-0755-8325-4547

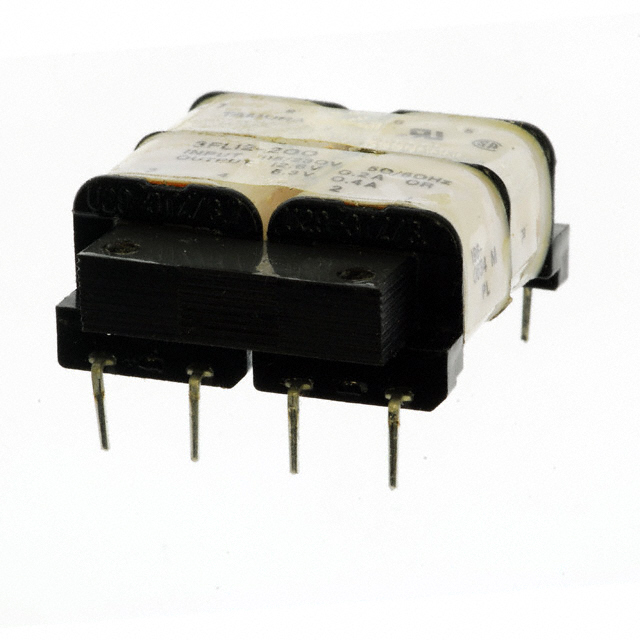

3FL12-200

3FL12-200

Part Number	3FL12-200
Manufacturer	Tamura
Other Part Numbers	MT1105-ND 3FL12200 Q8646688 PF2.5-12(BOX) MT1105-NDR 3FL-12-200 MT1105 PF2.5-12 PF2.5-12(BULK)
Description	PWR XFMR LAMINATED 2.5VA TH
Manufacturer Standard Lead Time	26 weeks
Datasheet	Datasheet

Product Attributes

Category		Transformers Power Transformers
Manufacturer		Tamura
Series		3FL
Packaging		Bulk
Part Status		Active
Size / Dimension		47.60mm L x 39.60mm W
Mounting Type		Through Hole
Type		Laminated Core
Termination Style		PC Pin
Primary Winding(s)		Dual
Secondary Winding(s)		Dual
Power - Max		2.5VA
Voltage - Isolation		1500Vrms
Current - Output (Max)		Parallel 400mA, Series 200mA
Voltage - Primary		115V, 230V
Height - Seated (Max)		16.80mm
Voltage - Secondary (Full Load)		Parallel 6.3V, Series 12.6V
Center Tap		No

Documents & Media

RESOURCE TYPE		LINK
Datasheets		3FL12-200
Datasheets		Multiple Devices Location 10/Sep/2020
Datasheets		3FL, PF Series Schematic
Datasheets		3FL, PF Series Side

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8504.31.4035
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

In Stock: 1600

Can ship immediately.
