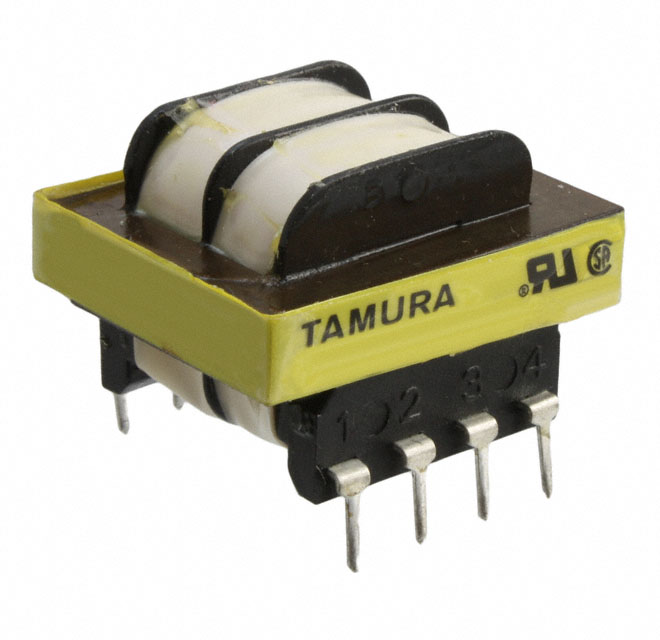

3FD-256

3FD-256

Part Number	3FD-256
Manufacturer	Tamura
Other Part Numbers	MT2129-ND MT2129 3FD256 MT6106 PSD2-56 MT2129-NDR
Description	PWR XFMR LAMINATED 1.1VA TH
Manufacturer Standard Lead Time	26 weeks
Datasheet	Datasheet

Product Attributes

Category		Transformers Power Transformers
Manufacturer		Tamura
Series		3FD-2xx
Packaging		Tube
Part Status		Active
Size / Dimension		35.56mm L x 31.00mm W
Mounting Type		Through Hole
Type		Laminated Core
Termination Style		PC Pin
Primary Winding(s)		Dual
Secondary Winding(s)		Dual
Power - Max		1.1VA
Voltage - Isolation		2500Vrms
Current - Output (Max)		Parallel 40mA, Series 20mA
Voltage - Primary		115V, 230V
Height - Seated (Max)		38.00mm
Voltage - Secondary (Full Load)		Parallel 28V, Series 56V
Center Tap		No

Documents & Media

RESOURCE TYPE		LINK
Datasheets		3FD-256
Datasheets		Multiple Devices Location 10/Sep/2020
Datasheets		3F(S,D) Series Side 1
Datasheets		3F(S,D) Series Top

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.4035
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

In Stock: 171

Can ship immediately.
