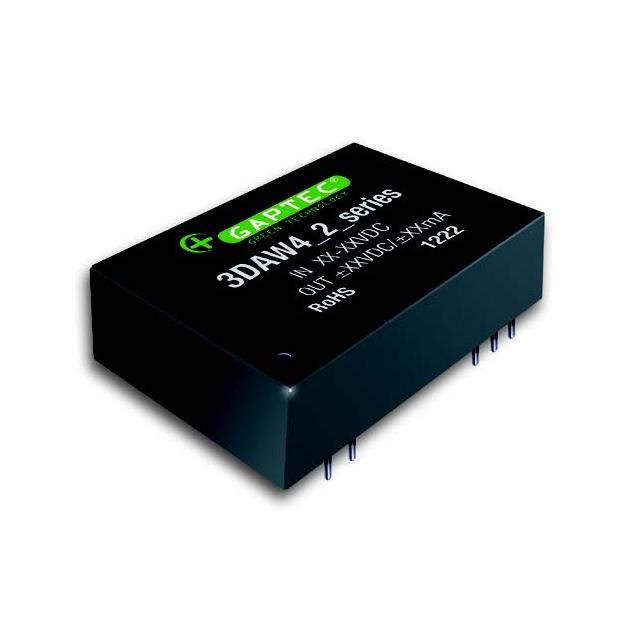

3DAW4_1215S4 _ DC DC Converters_Power Supplies

Part Number	3DAW4_1215S4
Manufacturer	GAPTEC Electronic
Other Part Numbers	3182-3DAW4_1215S4-ND 3182-3DAW4_1215S4DKRINACTIVEINACTIVE-ND 3182-3DAW4_1215S4DKRINACTIVE 3182-3DAW4_1215S4CT-ND 3182-3DAW4_1215S4 3182-3DAW4_1215S4CT 3182-3DAW4_1215S4INACTIVE 3182-3DAW4_1215S4DKRINACTIVEINACTIVE 3182-3DAW4_1215S4DKR 3182-3DAW4_1215S4INACTIVE-ND 3182-3DAW4_1215S4DKR-ND 3182-3DAW4_1215S4DKRINACTIVE-ND 3182-3DAW4_1215S4TR-ND 3182-3DAW4_1215S4-ND 3182-3DAW4_1215S4TR 3182-3DAW4_1215S4CTINACTIVE
Description	DC-DC INDUSTRIAL
Detailed Description	Isolated Module DC DC Converter 1 Output 15V 200mA 4.5V - 18V Input
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Category		Power Supplies - Board Mount DC DC Converters
Manufacturer		GAPTEC Electronic
Series		3DAW4_2 (3W)
Packaging		Tube
Part Status		Active
Features		Remote On/Off
Package / Case		24-DIP Module, 9 Leads
Size / Dimension		1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
Mounting Type		Through Hole
Type		Isolated Module
Operating Temperature		-40°C ~ 85°C (With Derating)
Applications		ITE (Commercial)
Voltage - Input (Max)		18V
Efficiency		85%
Current - Output (Max)		200mA
Voltage - Input (Min)		4.5V
Voltage - Output 1		15V
Power (Watts)		3 W
Number of Outputs		1
Voltage - Isolation		4 kV

RESOURCE TYPE		LINK
Datasheets		3DAW4_1215S4
