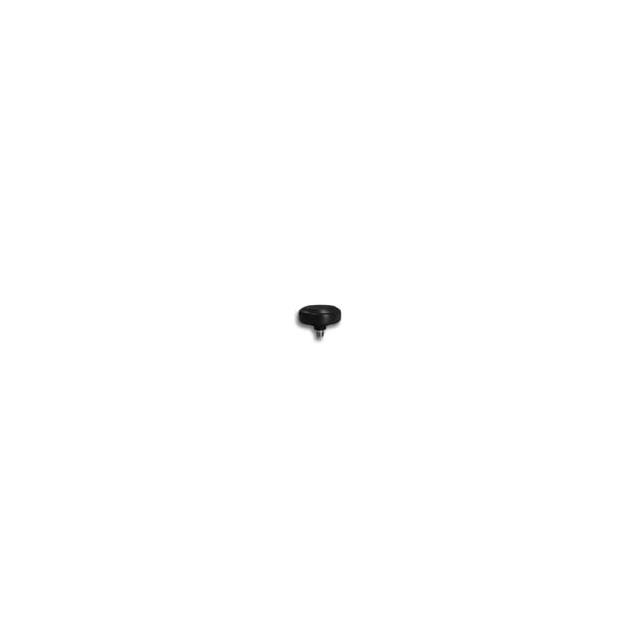

3977D-W

3977D-W

Part Number	3977D-W
Manufacturer	PCTEL
Other Part Numbers	3299-3977D-W-ND 3299-3977D-W
Description	RF ANT 1.575GHZ DOME TNC F BRKT
Detailed Description	1.575GHz GNSS, GPS Dome RF Antenna 1.565GHz ~ 1.585GHz 30dBi TNC Female Bracket Mount, Through Hole
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Antennas
Manufacturer		PCTEL
Series		3977D
Packaging		Box
Part Status		Active
Features		LNA, Filter
Mounting Type		Bracket Mount, Through Hole
Frequency Range		1.565GHz ~ 1.585GHz
Applications		GNSS, GPS
Gain		30dBi
Termination		TNC Female
Ingress Protection		IP67
Number of Bands		1
Antenna Type		Dome
Height (Max)		0.827" (21.00mm)
Frequency Group		UHF (1GHz ~ 2GHz)
Frequency (Center/Band)		1.575GHz
RF Family/Standard		Navigation

Documents & Media

RESOURCE TYPE		LINK
Datasheets		3977D-W

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		7A994
HTSUS		8529.10.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)

In Stock: 8

Can ship immediately.
