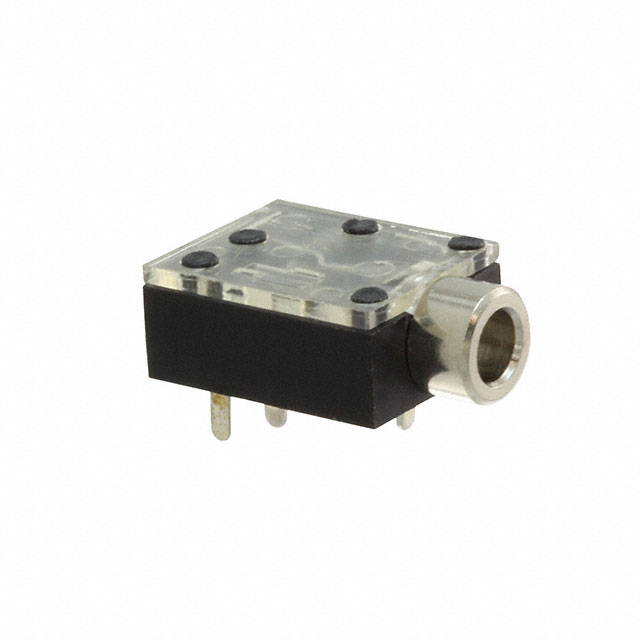

35RAPC2BHN3 _ Audio Connectors_Barrel Connectors_Connectors, Interconnects

Part Number	35RAPC2BHN3
Manufacturer	Switchcraft / Conxall
Other Part Numbers	SC2812-ND 35RAPC2BHN3-ND SC2812
Description	CONN JACK STEREO 3.5MM R/A
Detailed Description	3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Barrel Connectors Audio Connectors
Manufacturer		Switchcraft / Conxall
Series		35
Packaging		Bulk
Part Status		Active
Connector Type		Phone Jack
Gender		Female
Mounting Type		Through Hole, Right Angle
Shielding		Unshielded
Number of Positions/Contacts		3 Conductors, 3 Contacts
Internal Switch(s)		Does Not Contain Switch
Signal Lines		Stereo (3 Conductor, TRS)
Termination		Solder
Contact Material		Copper Alloy
Housing Material		Polybutylene Terephthalate (PBT)
Body Material		Brass
Body Color		Silver, Black
Contact Material - Plating		Silver
Actual Diameter		0.142" (3.60mm)
Industry Recognized Mating Diameter		3.50mm (0.141", 1/8", Mini Plug) - Headphone

RESOURCE TYPE		LINK
Datasheets		Switchcraft RoHS Cert

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
