354079-E _ Headers, Receptacles, Female Sockets_Rectangular Connectors_Connectors, Interconnects

Part Number	354079-E
Manufacturer	TE Connectivity ERNI
Other Part Numbers	2684-354079-ETR-ND 2684-354079-ECT-ND 2684-354079-EDKR-ND 2684-354079TR 2684-354079DKR-ND 2684-354079DKR 2684-354079CT-ND 2684-354079CT 354079 2684-354079-ECT 2684-354079TR-ND 2684-354079-ETR 2684-354079-EDKR

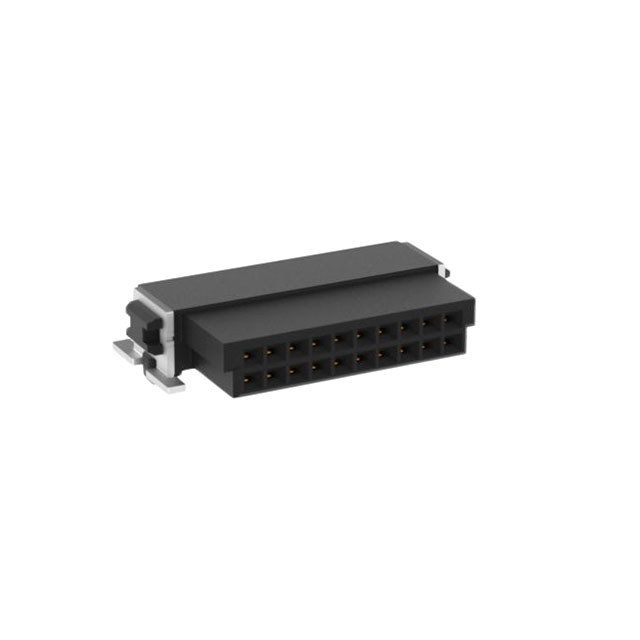

Description	20-PIN, RIGHT ANGLE, SMT
Detailed Description	20 Position Receptacle Connector 0.050" (1.27mm) Surface Mount, Right Angle Gold
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Manufacturer		TE Connectivity ERNI
Series		SMC
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Board Guide, Solder Retention
Connector Type		Receptacle
Current Rating (Amps)		1.7A per Contact
Mounting Type		Surface Mount, Right Angle
Number of Positions		20
Style		Board to Board
Operating Temperature		-55°C ~ 125°C
Contact Type		Female Socket
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Insulation Color		Black
Pitch - Mating		0.050" (1.27mm)
Contact Finish - Mating		Gold
Contact Finish - Post		Tin
Contact Finish Thickness - Post		157.5µin (4.00µm)
Contact Shape		Square
Insulation Height		0.152" (3.85mm)
Insulation Material		Liquid Crystal Polymer (LCP)
Row Spacing - Mating		0.050" (1.27mm)
Number of Rows		2

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
