3505FX _ Audio Connectors_Barrel Connectors_Connectors, Interconnects

Part Number	3505FX
Manufacturer	Switchcraft / Conxall
Other Part Numbers	SC1984-ND Q2362958A 3505FX-ND 3505F SC1984 3505F-ND

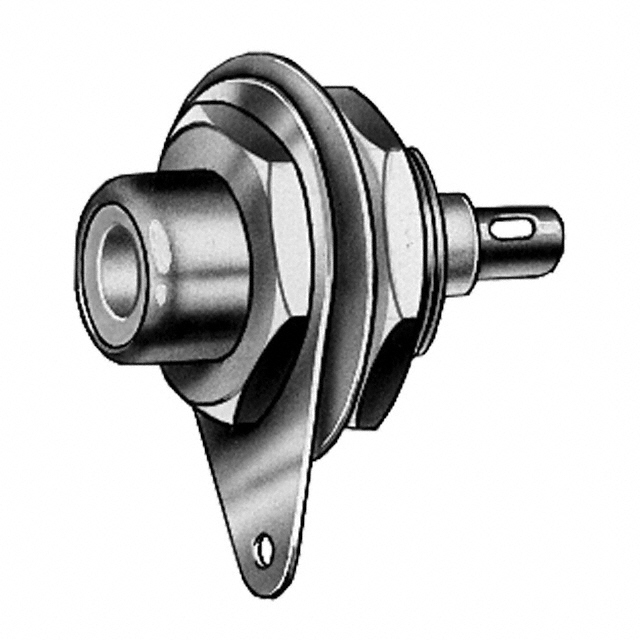

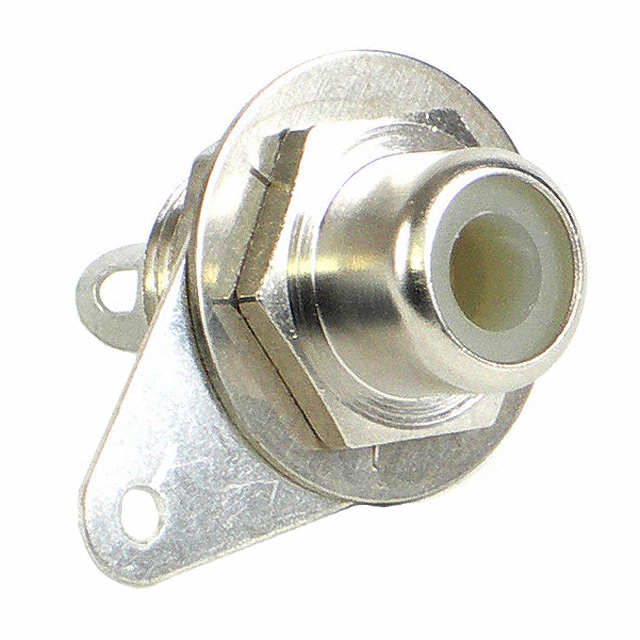

Description	CONN RCA JACK MONO 3.2MM PNL MT
Detailed Description	3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder Eyelet(s)
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Barrel Connectors Audio Connectors
Manufacturer		Switchcraft / Conxall
Series
Packaging		Bulk
Part Status		Active
Features		Grounding Tab, Mounting Hardware
Connector Type		Phono (RCA) Jack
Gender		Female
Mounting Type		Panel Mount
Shielding		Unshielded
Thread Size		3/8"-32
Panel Hole Size		0.375" (9.52mm)
Number of Positions/Contacts		2 Conductors, 2 Contacts
Internal Switch(s)		Does Not Contain Switch
Signal Lines		Mono
Termination		Solder Eyelet(s)
Includes		3 pcs - 1 Connector, 1 Nut, 1 Washer
Contact Material		Copper Alloy
Body Material		Copper Alloy
Body Color		Silver
Contact Material - Plating		Nickel
Insulation Color		White
Industry Recognized Mating Diameter		3.20mm ID, 9.00mm OD (RCA)

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4030
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
