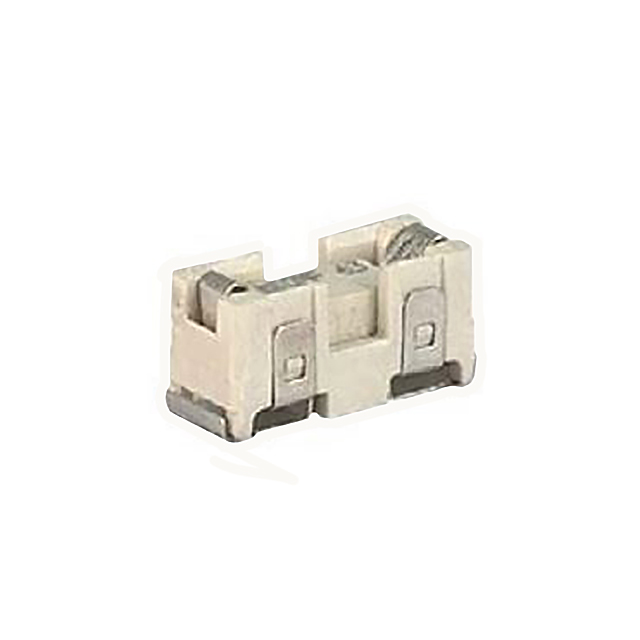

3422.0047.11

3422.0047.11

Part Number	3422.0047.11
Manufacturer	SCHURTER
Other Part Numbers	486-6907-ND 486-6907 3422.0047.11-ND
Description	FUSE BRD MNT 1.5A 63VAC/VDC 2SMD
Detailed Description	1.5 A 63 V AC 63 V DC Fuse Board Mount (Cartridge Style Excluded) Requires Holder, Surface Mount 2-SMD, Square End Block with Holder
Manufacturer Standard Lead Time	24 weeks
Datasheet	Datasheet

Product Attributes

Category		Circuit Protection Fuses
Manufacturer		SCHURTER
Series		OMK 63
Packaging		Bulk
Part Status		Active
Package / Case		2-SMD, Square End Block with Holder
Size / Dimension		0.472" L x 0.205" W x 0.236" H (12.00mm x 5.20mm x 6.00mm)
Fuse Type		Board Mount (Cartridge Style Excluded)
Mounting Type		Requires Holder, Surface Mount
Operating Temperature		-40°C ~ 85°C
Response Time		Fast Blow
Breaking Capacity @ Rated Voltage		50A
Current Rating (Amps)		1.5 A
Voltage Rating - AC		63 V
Voltage Rating - DC		63 V
Melting I²t		0.24

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Mult Devs - Label Improvement 23/OCT/2020
Datasheets		Various Series 28/Jul/2014

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.10.0040
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 94

Can ship immediately.
