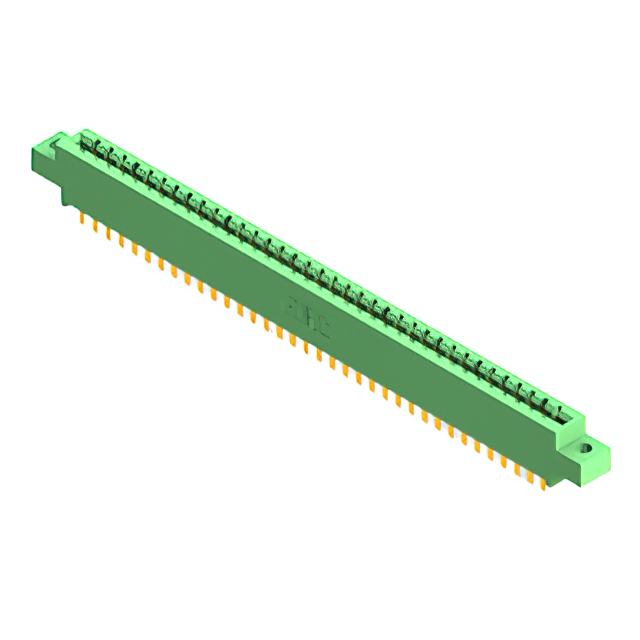

337-072-500-804 _ Edgeboard Connectors_Card Edge Connectors_Connectors, Interconnects

Part Number	337-072-500-804
Manufacturer	EDAC Inc.
Other Part Numbers	337-072-500-804-ND
Description	CONN EDGE DUAL FMALE 72POS 0.156
Detailed Description	72 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
Datasheet	Datasheet

Category		Connectors, Interconnects Card Edge Connectors Edgeboard Connectors
Manufacturer		EDAC Inc.
Series		337
Packaging		Bulk
Part Status		Active
Gender		Female
Contact Finish		Gold
Color		Green
Mounting Type		Through Hole
Number of Positions		72
Pitch		0.156" (3.96mm)
Operating Temperature		-40°C ~ 105°C
Read Out		Dual
Contact Type		Cantilever
Card Type		Non Specified - Dual Edge
Card Thickness		0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature		Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination		Solder Eyelet(s)
Contact Finish Thickness		10.0µin (0.25µm)
Material - Insulation		Polyester Thermoplastic
Contact Material		Copper Alloy
Number of Positions/Bay/Row		36
Number of Rows		2
Termination Rows		2

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
