336306-12-0050

336306-12-0050

Part Number	336306-12-0050
Manufacturer	Connex (Amphenol RF)
Other Part Numbers	ACX1886-ND ACX1886 3937-336306-12-0050 336306120050
Description	CBL ASSY AMC-RPSMA JCK-PL 1.969"

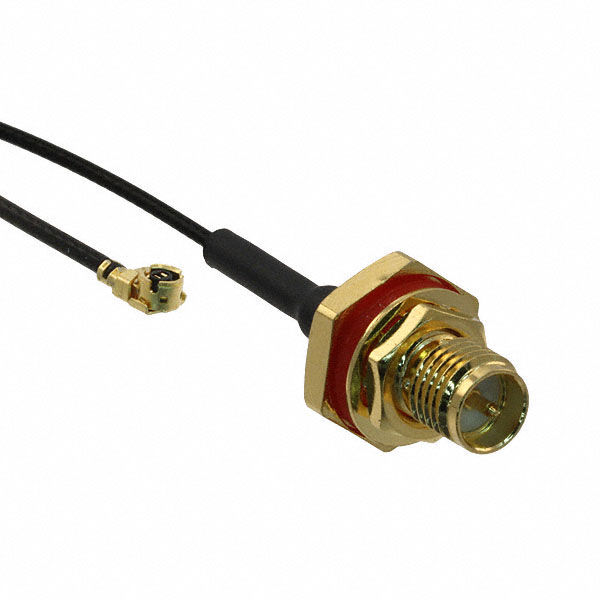

Detailed Description	Cable Assembly Coaxial U.FL (UMCC), AMC to RP-SMA 1.13mm OD Coaxial Cable 1.969" (50.00mm)

Product Attributes

Category		Cable Assemblies Coaxial Cables (RF)
Manufacturer		Connex (Amphenol RF)
Series
Packaging		Bulk
Part Status		Not For New Designs
Color		Black
Length		1.969" (50.00mm)
Style		U.FL (UMCC), AMC to RP-SMA
Cable Type		1.13mm OD Coaxial Cable
1st Connector		RP-SMA Jack
2nd Connector		U.FL (UMCC), AMC Plug, Right Angle
Frequency - Max		6 GHz
1st Connector Mounting Type		Panel Mount
2nd Connector Mounting Type		Free Hanging (In-Line)
1st Contact Gender		Male
2nd Contact Gender		Female
Overall Impedance		50 Ohms
1st Connector Mounting Feature		Bulkhead - Front Side Nut

Documents & Media

RESOURCE TYPE		LINK
Datasheets		336306-12-0050
Datasheets		RoHS Cert 336306-12-0050

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8544.20.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant

In Stock: 105

Can ship immediately.

Not recommended for new design, minimums may apply.
