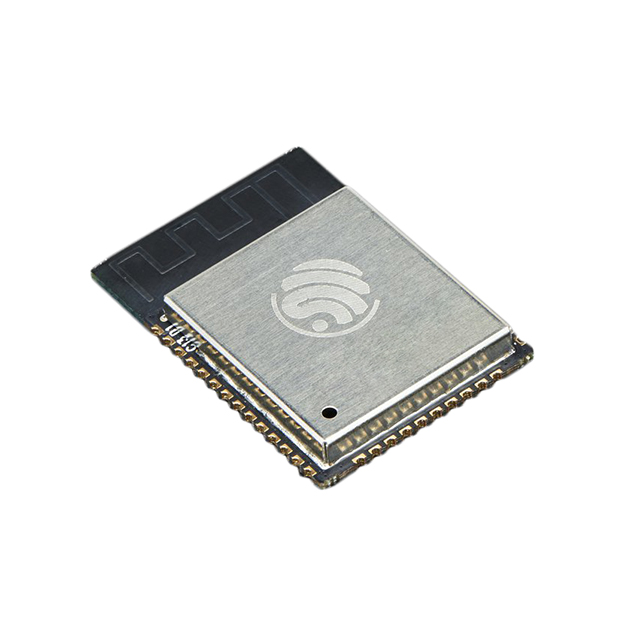

3320 _ RF Transceiver Modules and Modems_RF and Wireless

Part Number	3320
Manufacturer	Adafruit
Other Part Numbers	1528-1801-ND 1528-1801
Description	RF TXRX MODULE BT TRACE ANT SMD
Detailed Description	Bluetooth, WiFi 802.11a/b/g/n, Bluetooth v4.2 Transceiver Module 2.4GHz ~ 2.5GHz Integrated, Trace Surface Mount
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Category		RF and Wireless RF Transceiver Modules and Modems
Manufacturer		Adafruit
Series		WE-KI HC
Packaging		Bulk
Part Status		Active
Package / Case		Module
Sensitivity		-98dBm
Mounting Type		Surface Mount
Frequency		2.4GHz ~ 2.5GHz
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		2.2V ~ 3.6V
Power - Output		7.5dBm
Data Rate		150Mbps
Protocol		802.11a/b/g/n, Bluetooth v4.2
Current - Receiving		80mA
Current - Transmitting		80mA
Antenna Type		Integrated, Trace
Utilized IC / Part		ESP32
RF Family/Standard		Bluetooth, WiFi
Serial Interfaces		I2C, I2S, SPI, UART
DigiKey Programmable		Not Verified

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		5A992C
HTSUS		8517.62.0090
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
